New MA 15 (available coming soon)

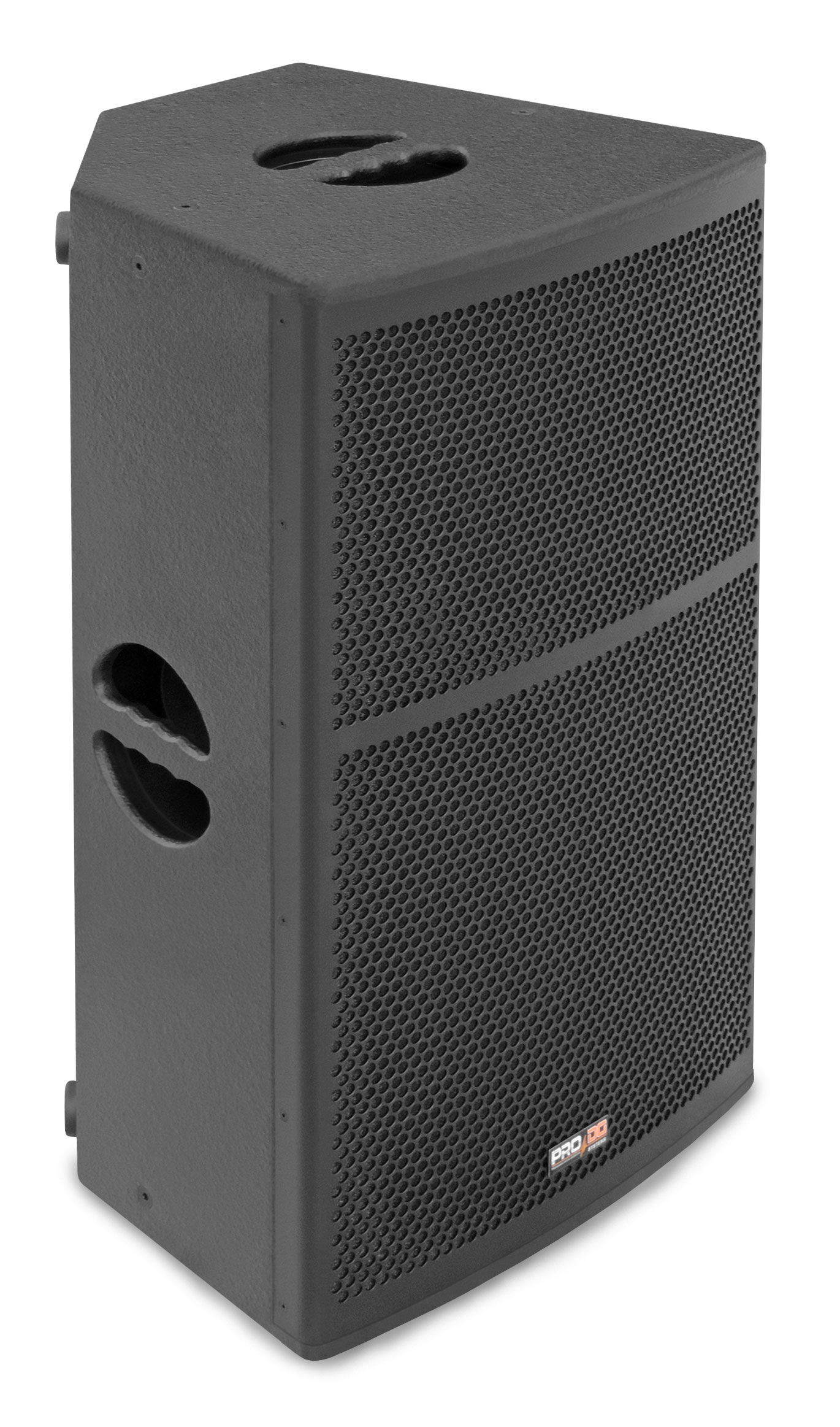

The New MA 15 is a 2-way multipurpose self-powered system equipped with one (1) speaker of 15" in a tuned enclosure. The HF section has one (1) compression driver of 1”, coupled to one (1) rotating diffuser of 60x40. MA 15 incorporates state-of-the-art Class-D amplification and a very intuitive processing for easy handling and absolute control, ready to plug in and work.

It is perfect to be used as P.A, frontfill and sidefill with or without subwoofer, as portable system or permanent installation, it has been also designed to be used as stage monitor. Excellent as sonorous reinforcement for all our systems.

DSP Software is available. Consult our Technical Service for more information.

Integrated hardware and all type of installation accessories and equipment are available to offer the maximum interaction with our different systems.

ACOUSTIC SPECIFICATIONS

Power Handling: 3000 W peak / 1500 W program / 750 W RMS (EIA 426A Standard).

Nominal Impedance: 8 Ohm.

Average Sensitivity: 100 dB / 2.83 V/1m (average 150 - 16000 Hz wideband).

Maximum SPL Calculation: / 1m 129 dB continuous / 132 dB programm / 135 dB peak.

Frequency Range: +/-3 dB between 50 Hz - 18 KHz.

Nominal Directivity: 60x40 rotating diffuser. Low / Mid Frequency Driver: One (1) Pro DG Systems speaker of 15”, 8 Ohm, 700 W.

High Frequency Driver: One (1) Pro DG Systems driver of 1”, 8 Ohm, 50 W.

Amplifier included: Last generation Class-D amplifier with voltage selector. 96kHz, 24 bit DSP processor with 3 factory presets.

Rigging Points: 9 x M8 Connectors: 1 XLR channel / combo with output for satellite + XLR Link.

Controls: ON/OFF switch, volume control, Bluetooth ON/OFF switch, TWS switch, DSP management switch + LCD display for presets selection.

Acoustic Enclosure: CNC fabrication in 15mm birch plywood.

Power Supply: 110~220V 50/60HZ with voltage selector.

Finish: Special textured black paint finish.

Dimensions: (HxWxD); 755x435x395mm (29,72”x17,13”15,55”).

Weight: 29,9 Kg (65,91 lbs) net / 32 Kg (70,55 lbs) with packaging.
