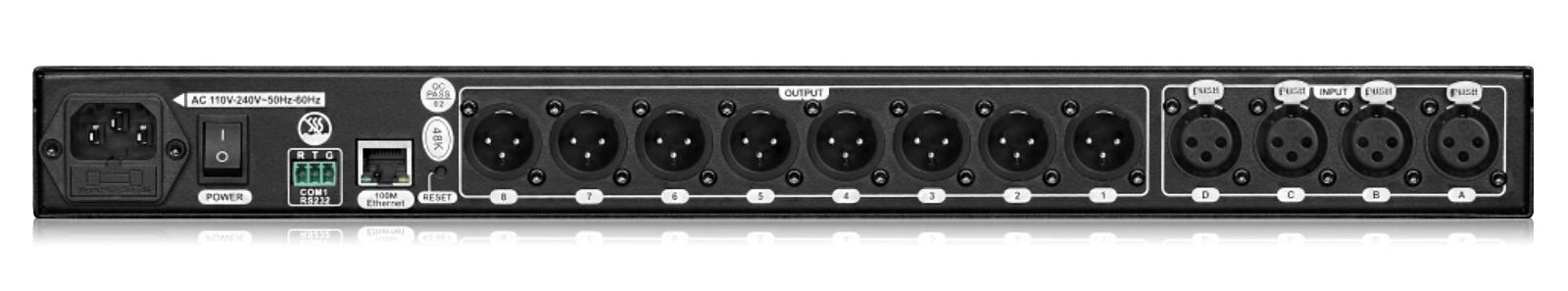

PRO 48K
The new PRO 48K Series from Pro DG Systems supposes a turnkey processing solution for Pro DG Systems passive products.
3 options available: 2 in - 4 out 3 in - 6 out 4 in - 8 out
State-of-the-art professional digital processors with compact and lightweight design. High end performance thanks to the inclusion of First-class components, offering high efficiency and energy saving which reduces the operation cost.
Everything under control thanks to ProDGnet management software.
TECHNICAL DATASHEET:
|
Sampling Rate |
48 kHz |
|
Analog Input |
4 XLR Balance |
|
Input Impedance |
20KΩ Balance / 10KΩ Unbalanced |
|
Analog Output |
8 XLR Balance |
|
Output Impedance |
180Ω Balance / 90Ω Unbalanced |
|
Frequency Response |
20 Hz – 20kHz ± 0.1 dB |
|
Default Output Level |
0dBu |
|
AD & DA Conversion |
32 bit ADC / 24 bit DAC |
|
Maximum Input Level |
18 dBu |
|
Maximum Output Level |
18 dBu |
|
THD + N |
≤ 0.002% @ 4 dBu 20 Hz – 20kHz |
|
System Delay |
≤ 1.7 ms |
|
Bottom Noise |
≤ -92 dBu |
|
Dynamic Range |
≥ 110 dB |
|
S/N Ratio |
≥ 110 dB |
|
Dimensions (HxWxD) |
40 x 480 x 205 mm / 1.58 x 18.90 x 8.07 in |
|
Weight |
2.8 Kg / 6,17 lbs |
