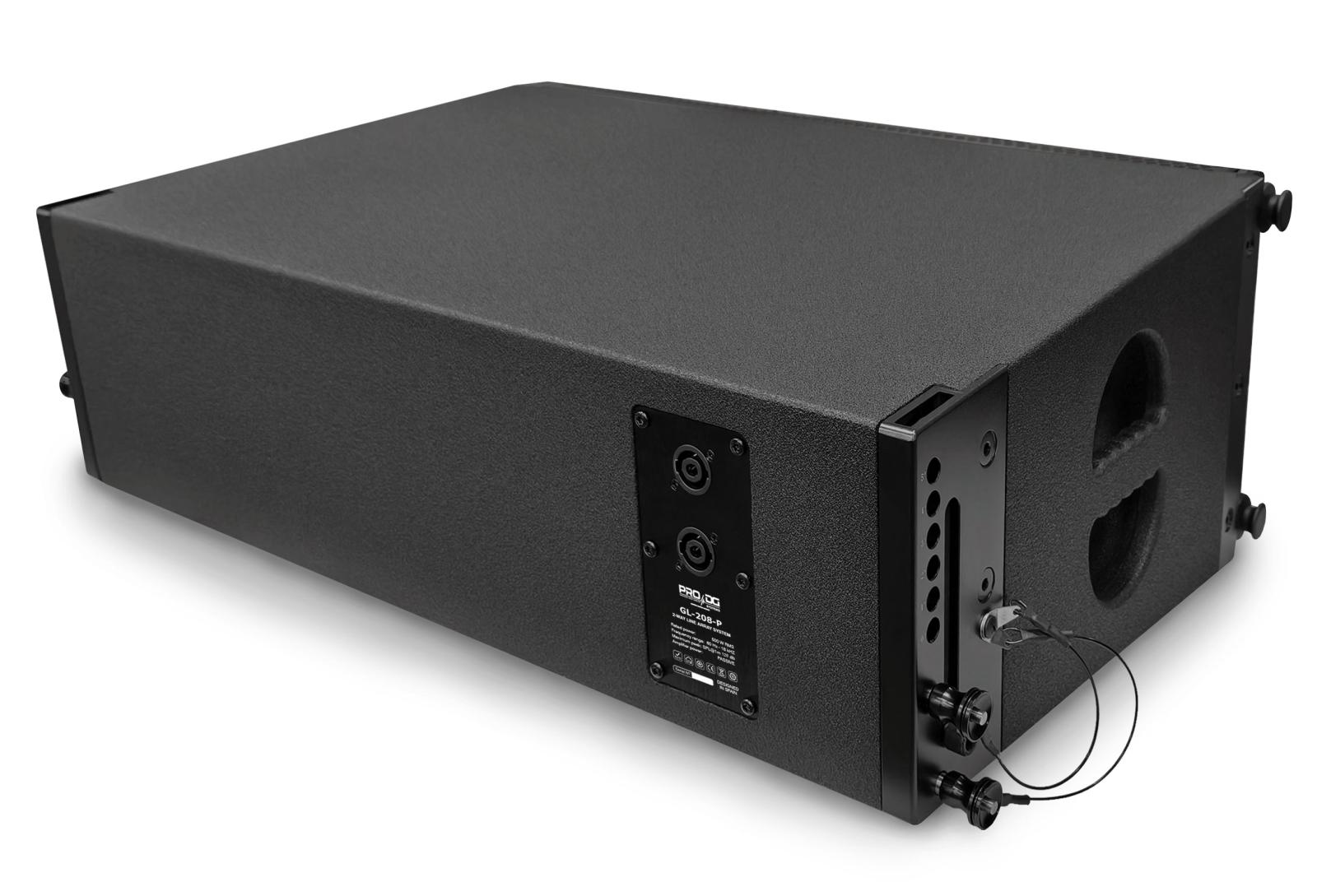

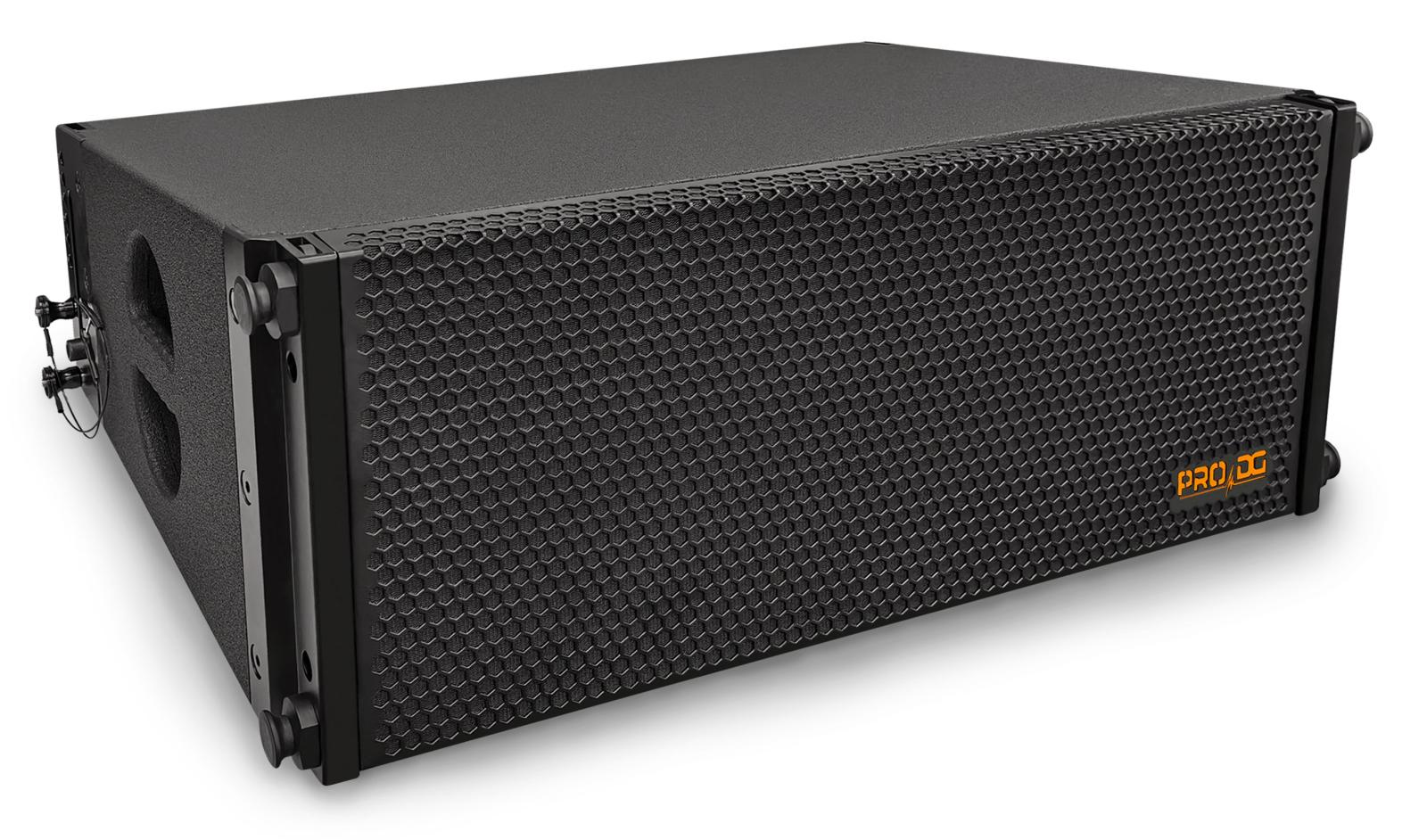

GL 208 P
GL-208-P is one of the Line Array systems from the new GL Series.
Designed in Spain, the new GL-208-P is the passive two-way Line Array system with the best quality-price ratio on the market.
Equipped with two 8” speakers in a tuned enclosure. The HF section features one 3” compression driver coupled to a waveguide.
The transducer configuration generates a symmetrical and horizontal dispersion of 90º without secondary lobes in the frequency range.
The construction of GL-208-P system is made of birch plywood using CNC machining, with water-based paint.
Its front part is protected by a robust metal grille and acoustic foam.
The flight hardware design of GL-208-P system is quick and intuitive to use.
Easy to transport thanks to its compact, lightweight and ergonomic design, offering a pleasant visual impact too.
The perfect solution as main PA, frontfill and sidefill at outdoor events or permanent installation. Ideal for working in live concerts, theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.
TECHNICAL DATASHEET:
|
Power handling |
500 W RMS / 1000 W program / 2000 W peak. |
|
Maximum SPL Calculation |
1m / 124 dB continuous / 127 dB program / 130 dB peak. |
|
Nominal impedance |
8 Ohm. |
|
Frequency range |
60 - 18000 Hz. |
|
Dispersion angle |
90º horizontal. 10º vertical. |
|
MF and LF components |
Two 8” speakers. Neodymium. 200 W RMS (each unit). |
|
HF component |
One 3" compression driver. Neodymium. 100 W RMS. |
|
Frequency cut-off for MF |
90 Hz Linkwitz-riley 24 filter - 1200 Hz Linkwitz-riley 24 filter. |
|
Frequency cut-off for HF |
1200 Hz Linkwitz-riley 24 filter - 18 kHz Linkwitz-riley 24 filter. |
|
Frequency cut-off for subwoofer |
Up to 90 Hz. Linkwitz-riley 24 filter. |
|
Connectors |
2 x Speakon NL4 MP. |
|
Construction |
Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam. |
|
Paint |
Water-based paint. Black color (standard). |
|
Dimensions (height x width x depth) |
255 x 680 x 414,5mm (10,04 x 26,77 x 16,32in). |
|
Weight |
24 Kg (52,91 lbs) net / 26,5 Kg (58,42 lbs) with packaging. |
