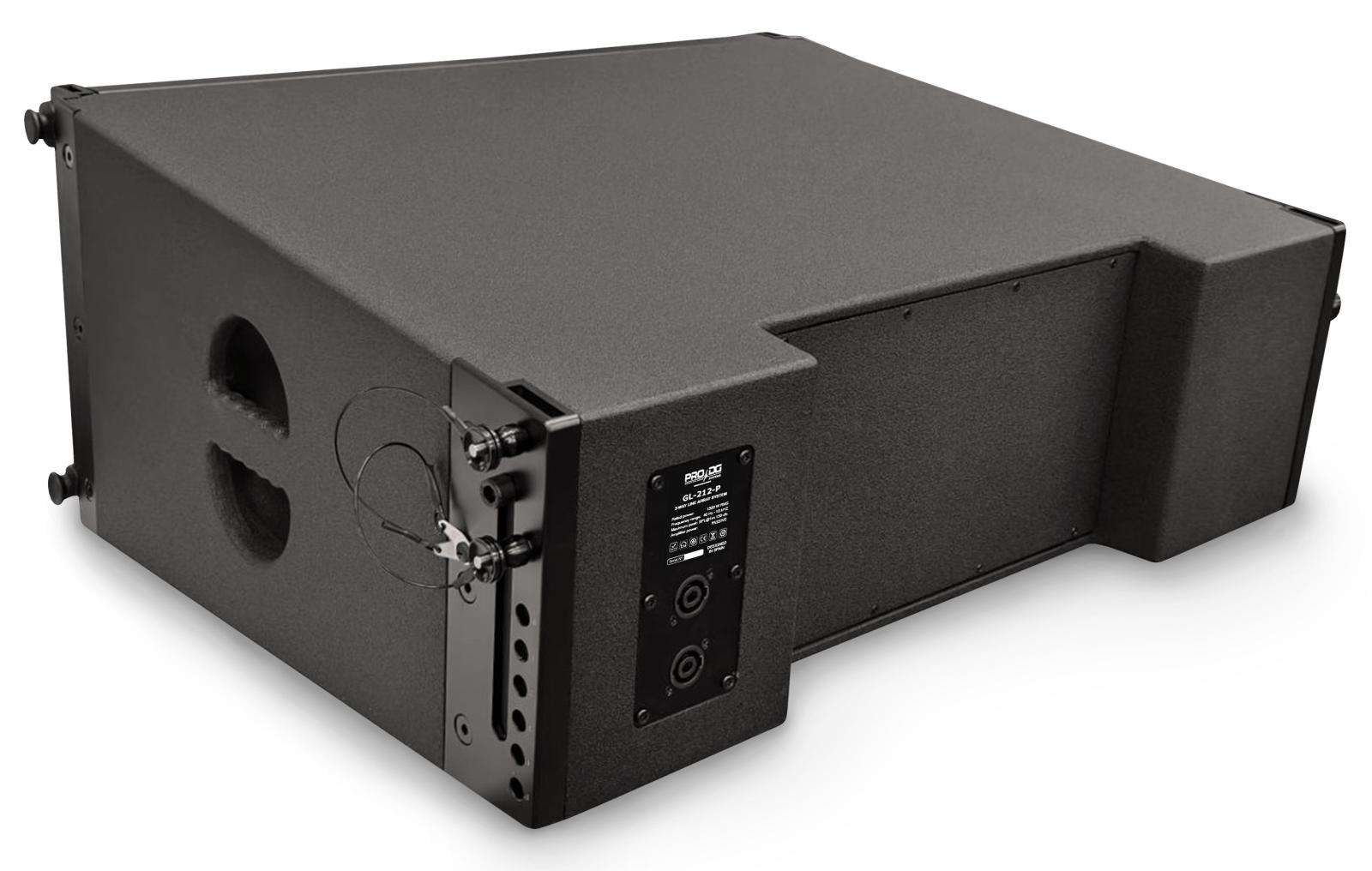

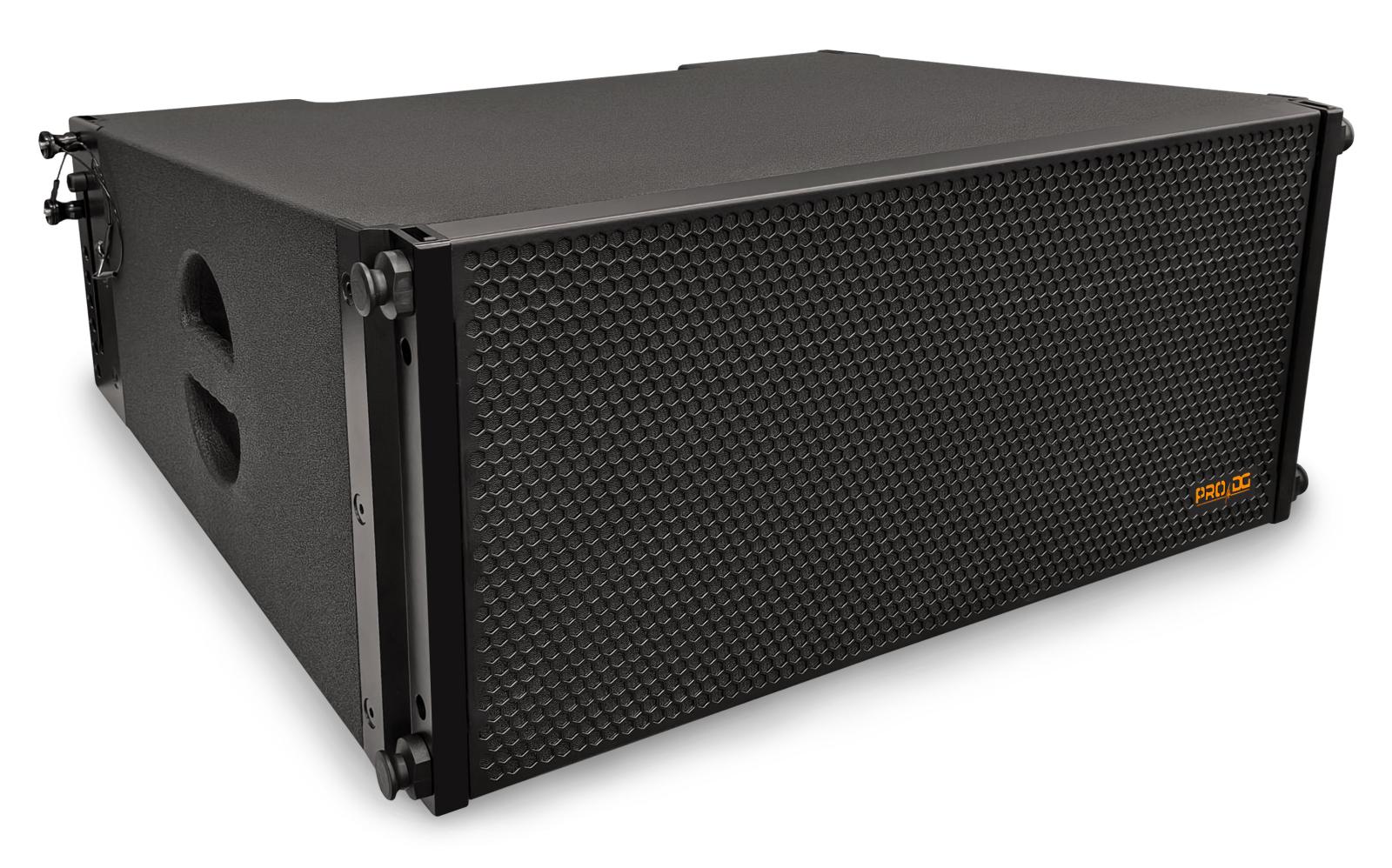

GL 212 P
GL-212-P is one of the Line Array systems from the new GL Series.
Designed in Spain, the new GL-212-P is the passive two-way Line Array system with the best quality-price ratio on the market.
Equipped with two 12" speakers for LF and two 8” speakers for MF in a tuned enclosure. The HF section features two 3” compression drivers coupled to a waveguide.
The transducer configuration generates a symmetrical and horizontal dispersion of 120º without secondary lobes in the frequency range.
The construction of GL-212-P system is made of birch plywood using CNC machining, with special polyurea finish resistant to impacts and inclement weather.
Its front part is protected by a robust metal grille and acoustic foam.
The flight hardware design of GL-212-P system is quick and intuitive to use.
Easy to transport thanks to its compact, lightweight and ergonomic design, offering a pleasant visual impact too.
The perfect solution as main PA, frontfill and sidefill at outdoor events or permanent installation. Ideal for working in live concerts, theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.
TECHNICAL DATASHEET:
|
Power handling |
1300 W RMS / 2600 W program / 5200 W peak. |
|
Maximum SPL Calculation |
1m / 129 dB continuous / 132 dB program / 135 dB peak. |
|
Nominal impedance |
8 Ohm. |
|
Frequency range |
40 - 18000 Hz. |
|
Dispersion angle |
120º horizontal. 10º vertical. |
|
LF components |
Two 12” speakers. Neodymium. 400 W RMS (each unit). |
|
MF components |
Two 8” speakers. Neodymium. 200 W RMS (each unit). |
|
HF components |
Two 3" compression drivers. Neodymium. 50 W RMS. |
|
Frequency cut-off for HF |
Without subwoofer: 65 Hz Linkwitz-riley 24 filter - 250 Hz Linkwitz-riley 24 filter. With subwoofer: 90 Hz Linkwitz-riley 24 filter - 250 Hz Linkwitz-riley 24 filter. |
|
Frequency cut-off for MF |
90 Hz Linkwitz-riley 24 filter - 1200 Hz Linkwitz-riley 24 filter. |
|
Frequency cut-off for HF |
1200 Hz Linkwitz-riley 24 filter - 18 kHz Linkwitz-riley 24 filter. |
|
Frequency cut-off for subwoofer |
Up to 90 Hz. Linkwitz-riley 24 filter. |
|
Connectors |
2 x Speakon NL4 MP. |
|
Construction |
Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam. |
|
Paint |
Special polyurea finish resistant to impacts and inclement weather. Black color (standard). |
|
Dimensions (height x width x depth) |
360 x 840 x 660mm (14,17 x 33,07 x 25,98in). |
|
Weight |
51 Kg (112,44 lbs) net / 53,5 Kg (117,95 lbs) with packaging. |
