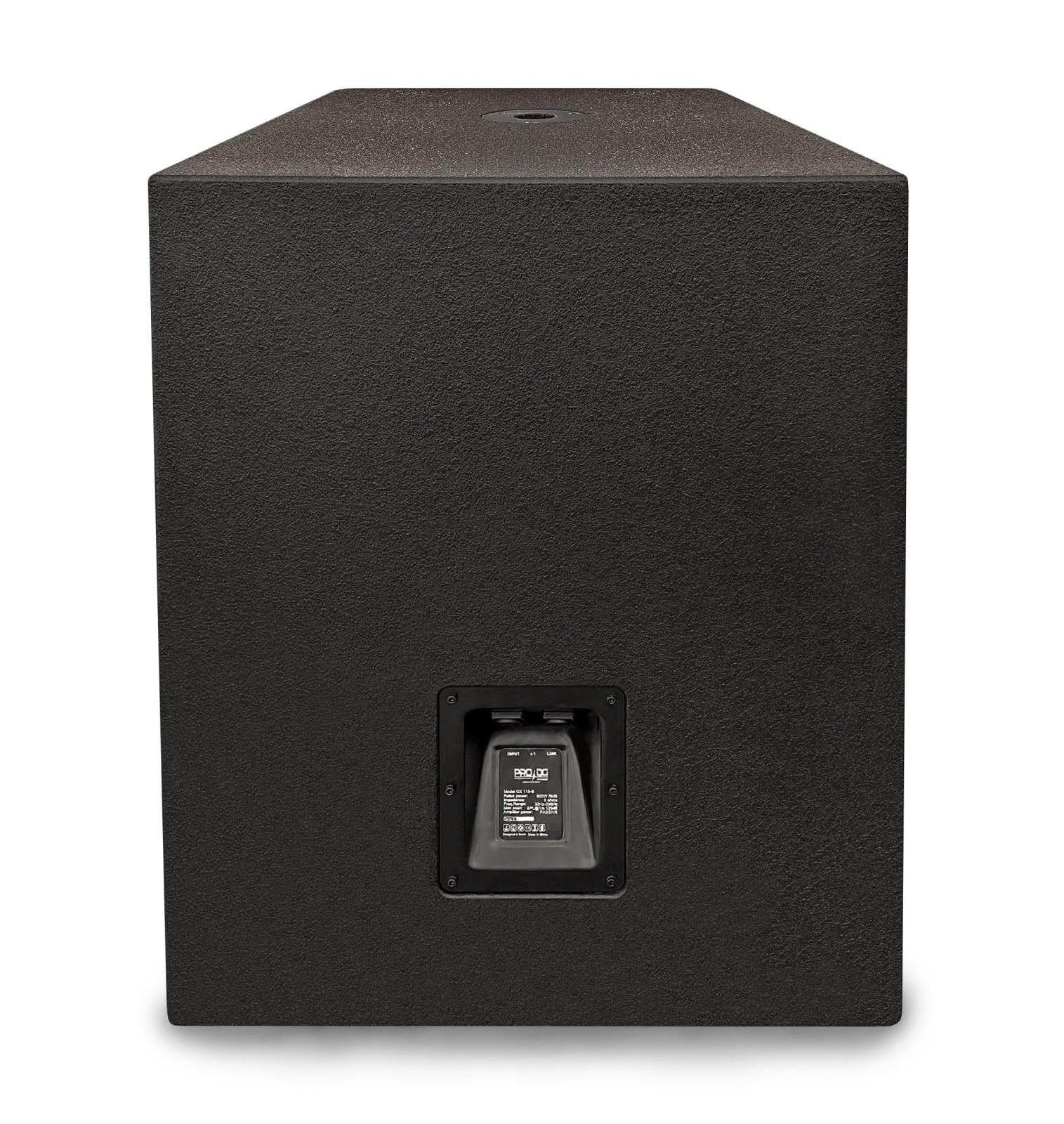

GX 118 B
Designed in Spain, the new GX 118 B is the 18” passive subwoofer system for point source applications with the best quality-price ratio on the market.
Equipped with one 18” speaker from Pro DG Systems in a tuned enclosure.
The construction of GX 118 B system is made of birch plywood using CNC machining, with a special water-based paint finish with IP20 protection. Its front part is protected by a robust metal grille and acoustic foam.
Easy to transport thanks to its compact, lightweight and ergonomic design, also offering a pleasant visual impact. It incorporates side handles for easy handling.
The perfect solution as low reinforcement for all the different satellites from GX Series in main PA, frontfill and sidefill at small outdoor events or permanent installation. Ideal as point source system in theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.
TECHNICAL DATASHEET:
|
Power handling |
800 W RMS / 1600 W program / 3200 W peak |
|
Maximum SPL Calculation |
1m / 123 dB continuous / 126 dB program / 129 dB peak |
|
Nominal impedance |
8 Ohm |
|
Frequency range |
32 - 200 Hz |
|
Dispersion angle |
Omnidirectional |
|
Component |
One 18” speaker. Ferrite. 800 W RMS |
|
Recommended Frequency cut-off |
Up to 100 Hz. Linkwitz-riley 24 filter |
|
Connectors |
2 x Speakon NL4 MP |
|
Construction |
Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam. Includes stand socket to attach extendable bar |
|
Paint |
Special polyurea finish resistant to impacts and inclement weather. Black color (standard) |
|
Dimensions (height x width x depth) |
690 x 561 x 596mm (27,17 x 22,09 x 23,46in) |
|
Weight |
35,2 Kg (77,60 lbs) net / 39,2 Kg (86,42 lbs) with packaging |
