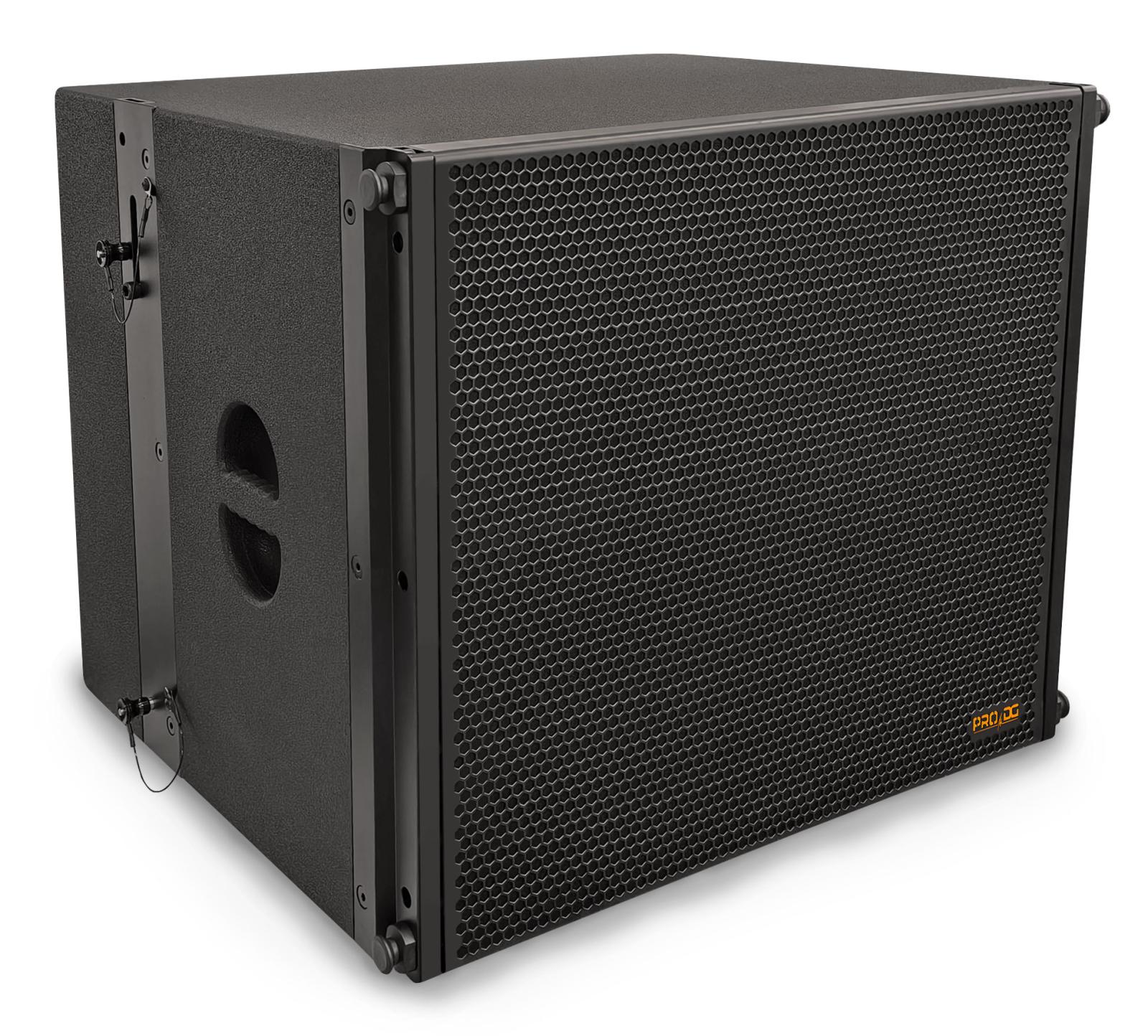

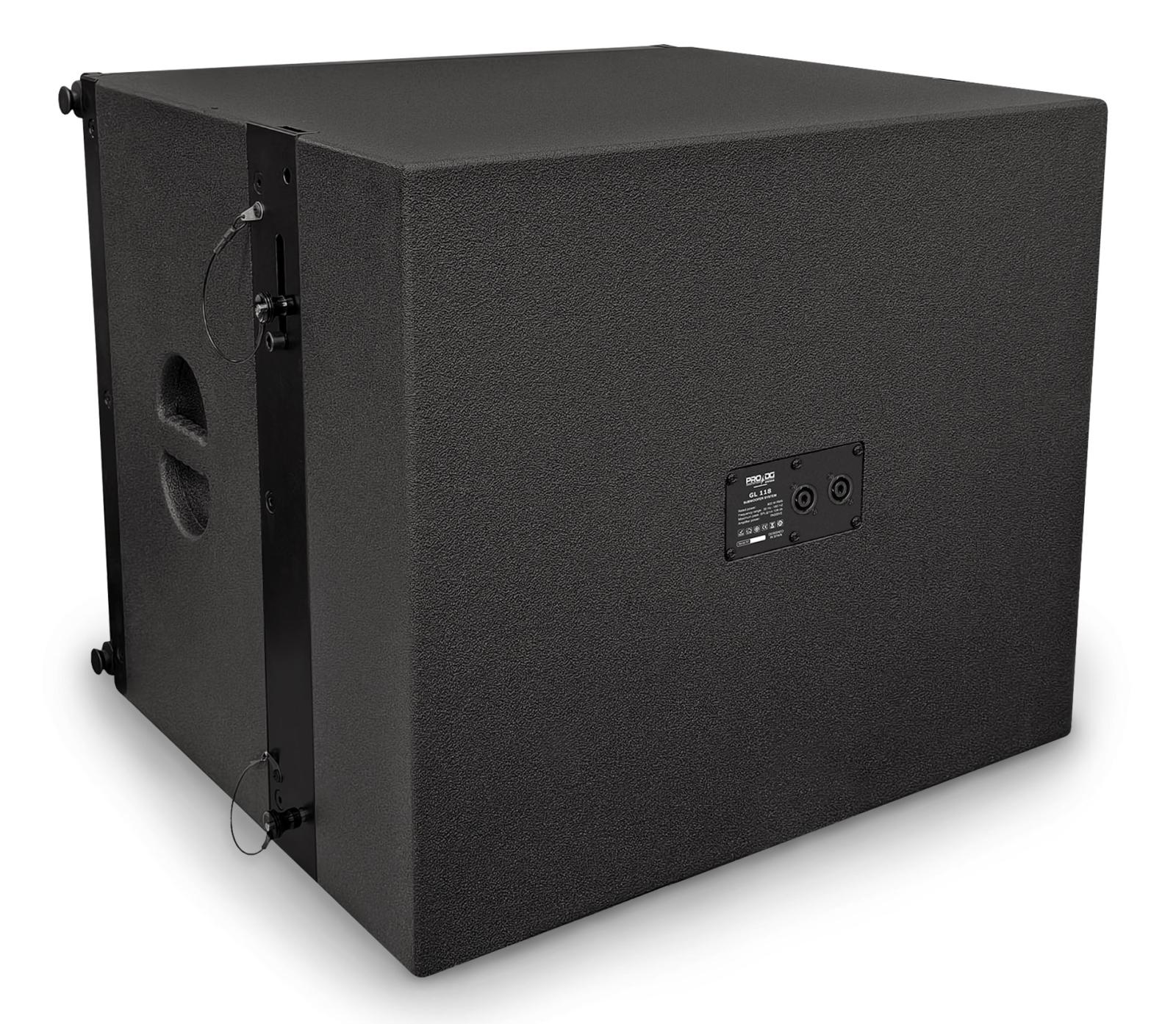

GL 118

Designed in Spain, GL 118 is one of the subwoofer systems of the new GL Series. Specifically designed to work with our GL 208 Line Array system in flight format, acting as LF reinforcement.

Equipped with one 18” speaker in a tuned enclosure.

The construction of GL 118 system is made of birch plywood using CNC machining, with a special water-based paint finish with IP20 protection. Its front part is protected by a robust metal grille and acoustic foam.

Easy to transport thanks to its compact, lightweight and ergonomic design, also offering a pleasant visual impact. It incorporates side handles for easy handling.

The perfect solution as main PA, frontfill and sidefill at small outdoor events or permanent installation. Ideal for theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.

---

TECHNICAL DATASHEET:

Power handling	800 W RMS / 1600 W program / 3200 W peak
Maximum SPL Calculation	1m / 122 dB continuous / 125 dB program / 128 dB peak
Nominal impedance	8 Ohm
Frequency range	35 - 180 Hz
Dispersion angle	Omnidirectional
Component	One 18” speaker. Ferrite. 800 W RMS
Recommended Frequency cut-off	Up to 100 Hz. Linkwitz-riley 24 filter
Connectors	2 x Speakon NL4 MP
Construction	Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam. Includes stand socket to attach extendable bar
Paint	Special water-based paint finish with IP20 protection. Black color (standard)
Dimensions (height x width x depth)	565 x 680 x 596mm (22,24 x 26,77 x 23,46in)
Weight	50,8 Kg (112 lbs) net / 53 Kg (116,85 lbs) with packaging
