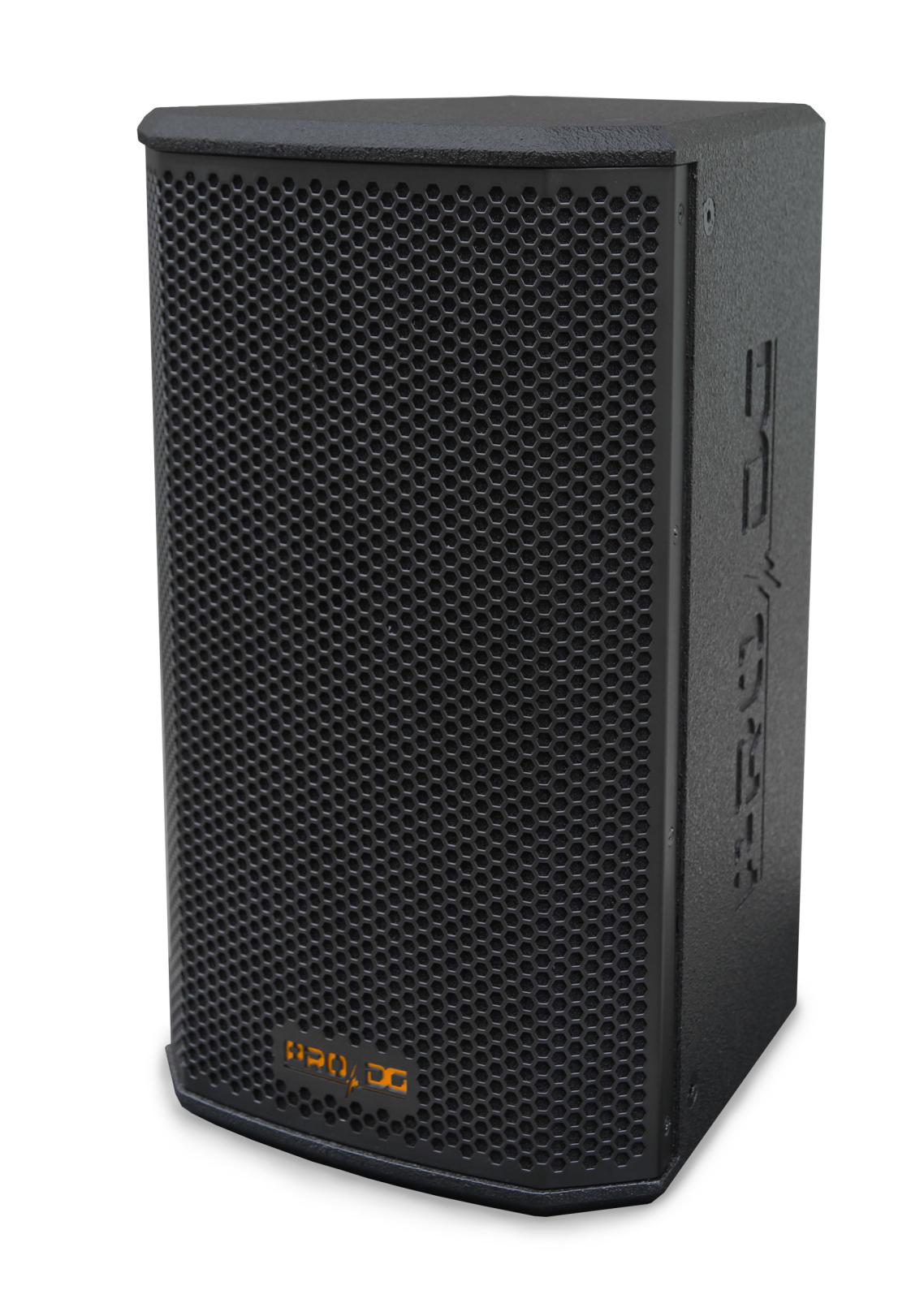

GX 10P
Designed in Spain, the new GX 10P is the 10” passive point source system with the best quality-price ratio on the market.
Equipped with one 10” speaker from Pro DG Systems in a tuned enclosure. The HF section features one 1.5” compression driver from Celestion coupled to a diffuser, offering a dispersion of 90ºx50º (H x V).
The construction of GX 10P system is made of birch plywood using CNC machining, with a special water-based paint finish with IP20 protection. Its front part is protected by a robust metal grille and acoustic foam.
GX 10P features a stand socket to attach a tripod or an extendable bar, allowing it to work together with a subwoofer unit in combo format. It has 12 rigging points for wall or ceiling installation. Installation hardware for wall or ceiling installation is available as option.
Easy to transport thanks to its compact, lightweight and ergonomic design, also offering a pleasant visual impact. It incorporates rear handle for easy handling.
The perfect solution as main PA, frontfill and sidefill at small outdoor events or permanent installation. Ideal as point source system in theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.
|
TECHNICAL DATASHEET |
|
|
Power handling |
235 W RMS / 470 W program / 940 W peak |
|
Maximum SPL Calculation |
1m / 118 dB continuous / 121 dB program / 124 dB peak |
|
Nominal impedance |
8 Ohm |
|
Frequency range |
65 - 18000 Hz |
|
Dispersion angle |
90ºx50º (HxV) diffuser |
|
MF and LF component |
One Pro DG Systems 10” speaker. Ferrite. 200 W RMS |
|
HF component |
One Celestion 1.5" compression driver. Ferrite. 35 W RMS |
|
Frequency cut-off for MF * |
55 Hz Linkwitz-riley 24 filter - 2000 Hz Linkwitz-riley 24 filter |
|
Frequency cut-off for HF * |
2000 Hz Linkwitz-riley 24 filter - 18 kHz Linkwitz-riley 24 filter |
|
Frequency cut-off for subwoofer * |
Up to 90 Hz. Linkwitz-riley 24 filter |
|
Connectors |
2 x Speakon NL4 MP |
|
Construction |
Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam. Includes stand socket to attach extendable bar |
|
Rigging points |
12 x M8 |
|
Paint |
Water-based paint finish with IP20 protection. Black color (standard) |
|
Dimensions (height x width x depth) |
540 x 298 x 298mm (21,26 x 11,73 x 11,73in) |
|
Weight |
14,6 Kg (32,19 lbs) net / 16 Kg (35,27 lbs) with packaging |
