KG 12 P
The new KG Series from Pro DG Systems has been developed with the purpose of offering a wide range of point source systems for economic party room applications.
Designed in Spain, the new KG 12 P is a 12” passive point source system specifically designed for economic party room applications.
Equipped with one 12” speaker in a tuned enclosure. The HF section features one 2” compression driver coupled to a diffuser, offering a dispersion of 90ºx60º (H x V).

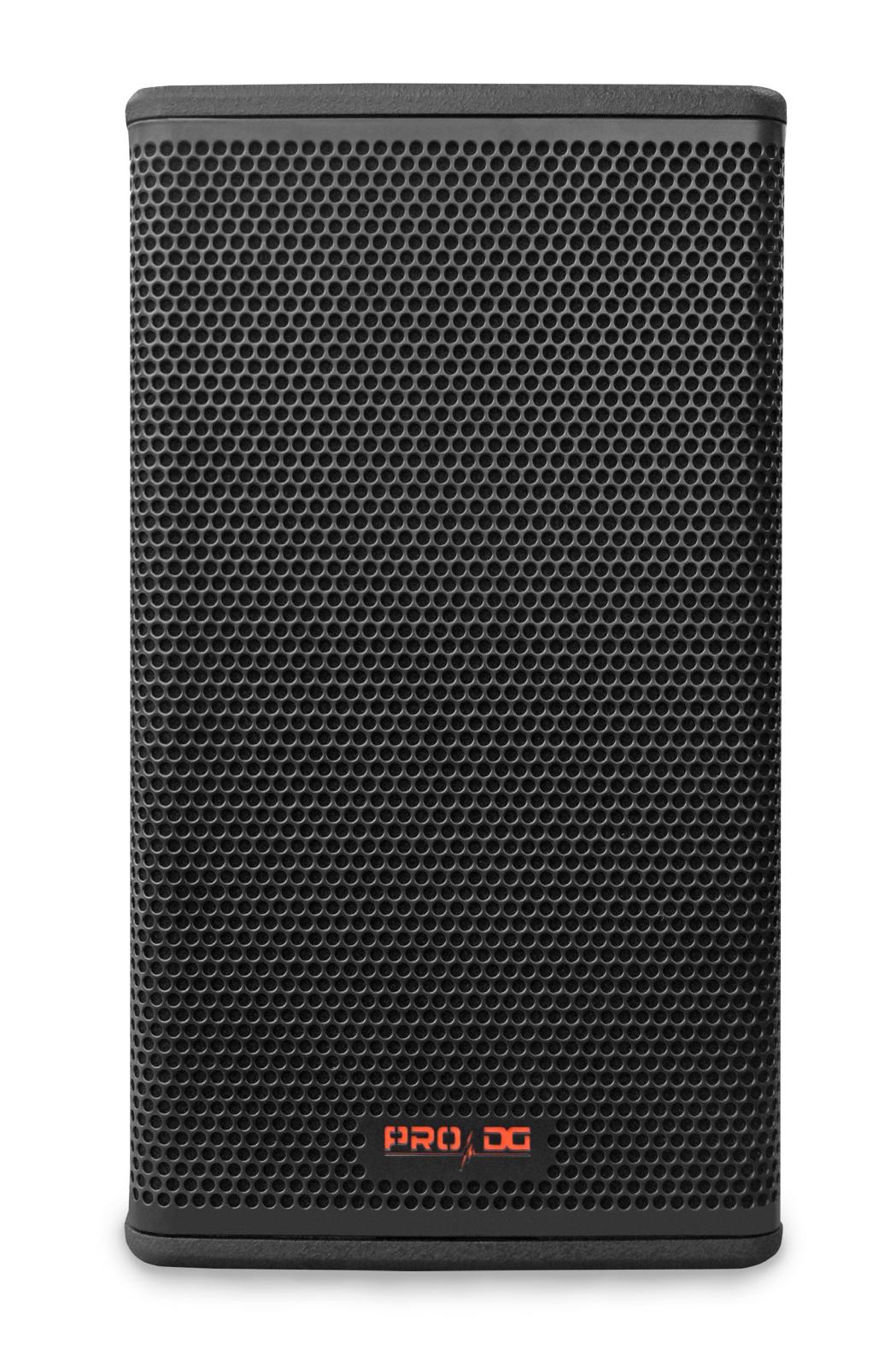

The construction of KG 12 P system is made of birch plywood using CNC machining, with water-based paint finish. Its front part is protected by a robust metal grille and acoustic foam.
KG 12 P features 19 rigging points for wall or ceiling installation. Installation hardware for wall or ceiling installation is available as option.
Easy to transport thanks to its compact and ergonomic design.
The perfect solution as main PA, frontfill and sidefill. Ideal as point source system for party room or karaoke applications and all types of places where an economic sound solution is necessary.
|
TECHNICAL DATASHEET |
|
|
Power handling |
400 W RMS / 800 W program / 1600 W peak |
|
Maximum SPL Calculation |
1m / 114 dB continuous / 117 dB program / 120 dB peak |
|
Nominal impedance |
8 Ohm |
|
Frequency range |
50 - 18000 Hz |
|
Dispersion angle |
90ºx60º (HxV) diffuser |
|
MF and LF component |
One 12” speaker. Ferrite. 350 W RMS |
|
HF component |
One 2" compression driver. Ferrite. 50 W RMS |
|
Frequency cut-off for MF * |
50 Hz Linkwitz-riley 24 filter - 2000 Hz Linkwitz-riley 24 filter |
|
Frequency cut-off for HF * |
2000 Hz Linkwitz-riley 24 filter - 18 kHz Linkwitz-riley 24 filter |
|
Frequency cut-off for subwoofer * |
Up to 90 Hz. Linkwitz-riley 24 filter |
|

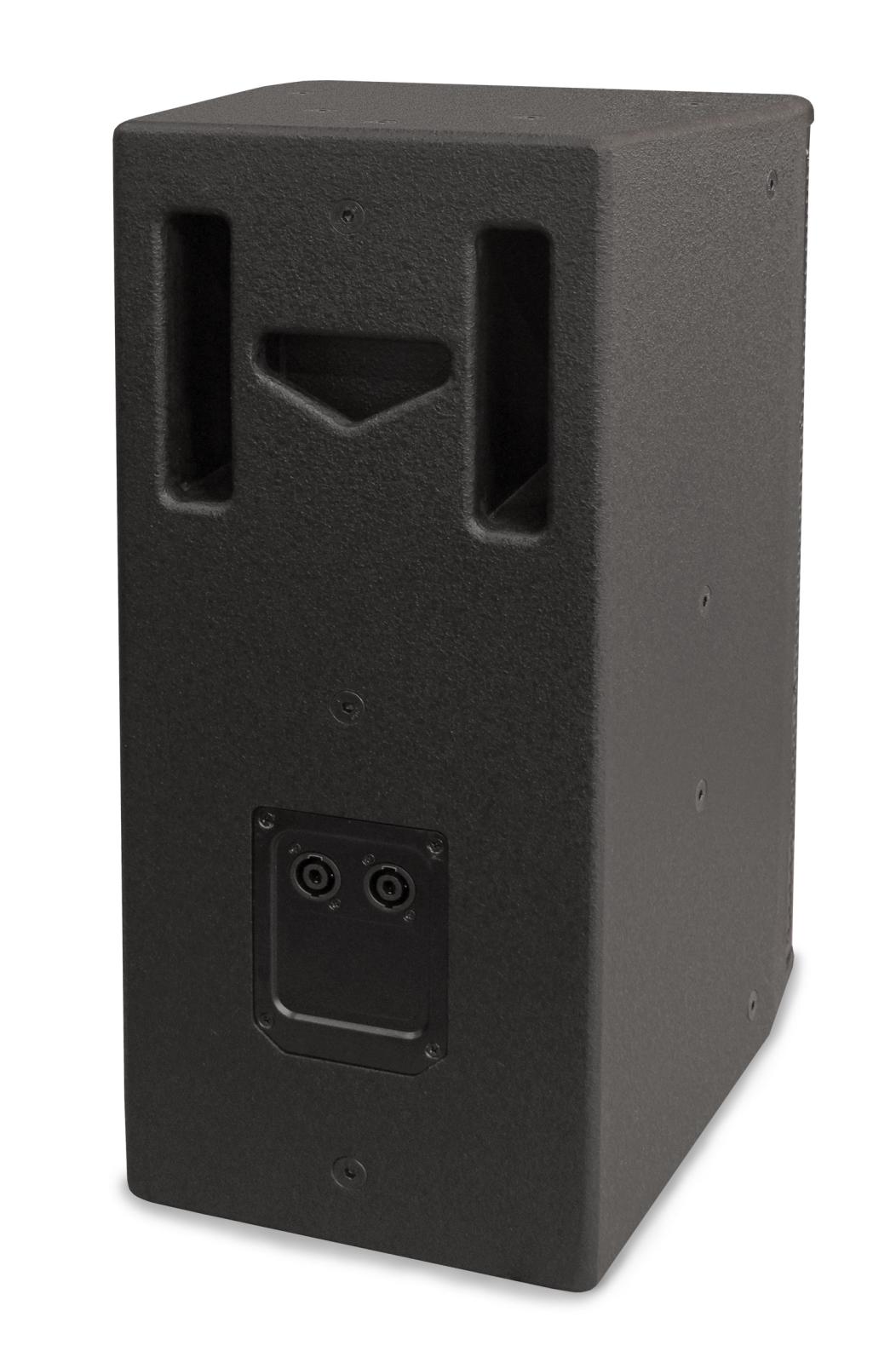

Connectors |
2 x Speakon NL4 MP |
|
Construction |
Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam |
|
Rigging points |
19 x M8 |
|
Paint |
Water-based finish. Black color (standard) |
|
Dimensions (height x width x depth) |
596 x 360 x 380mm (23,47 x 14,17 x 14,96in) |
|
Weight |
22 Kg (48,50 lbs) net / 23,5 Kg (51,81 lbs) with packaging |
