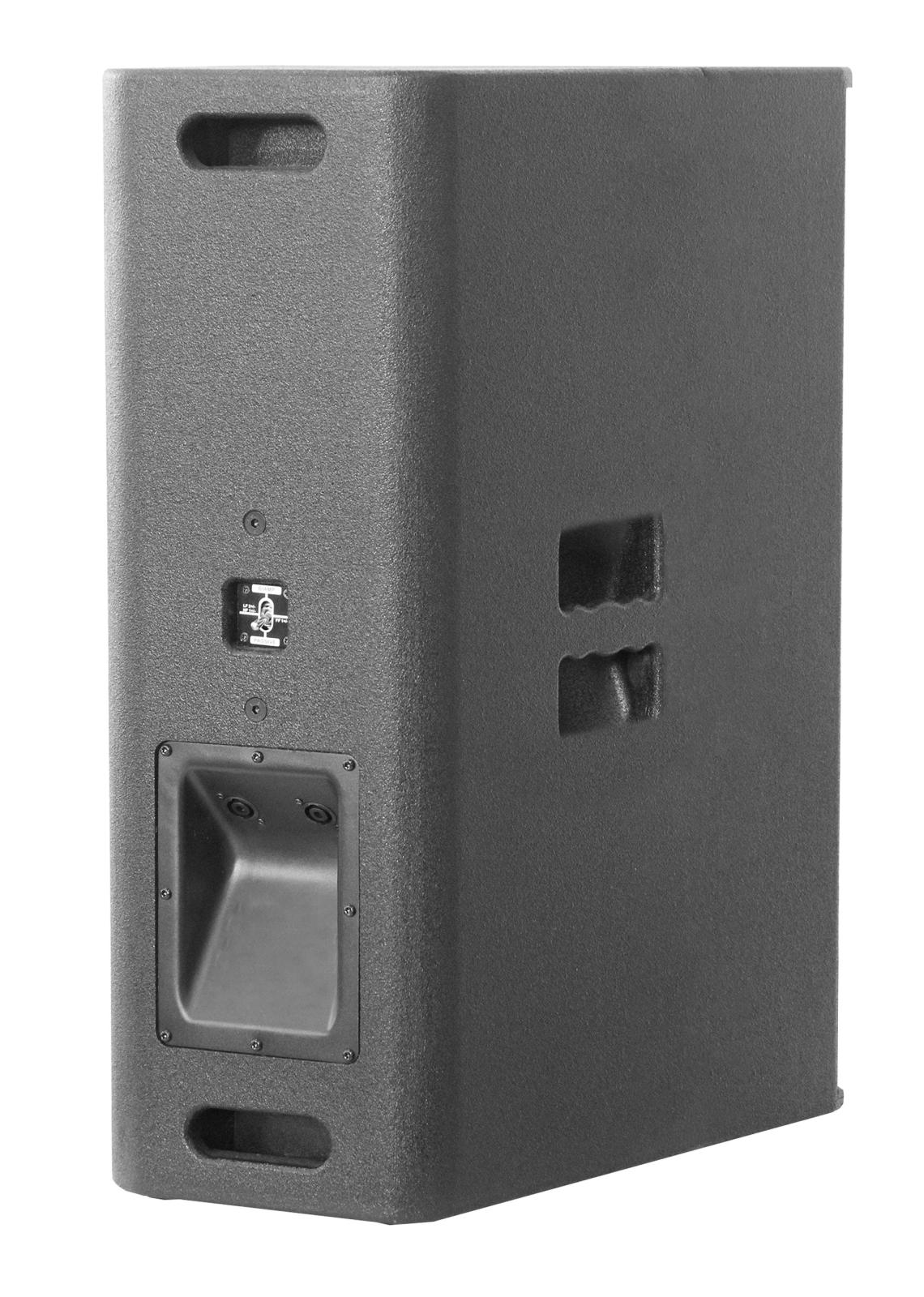

GX 212 T
Designed in Spain, the new GX 212 T is the double 12” passive point source system with the best quality-price ratio on the market.

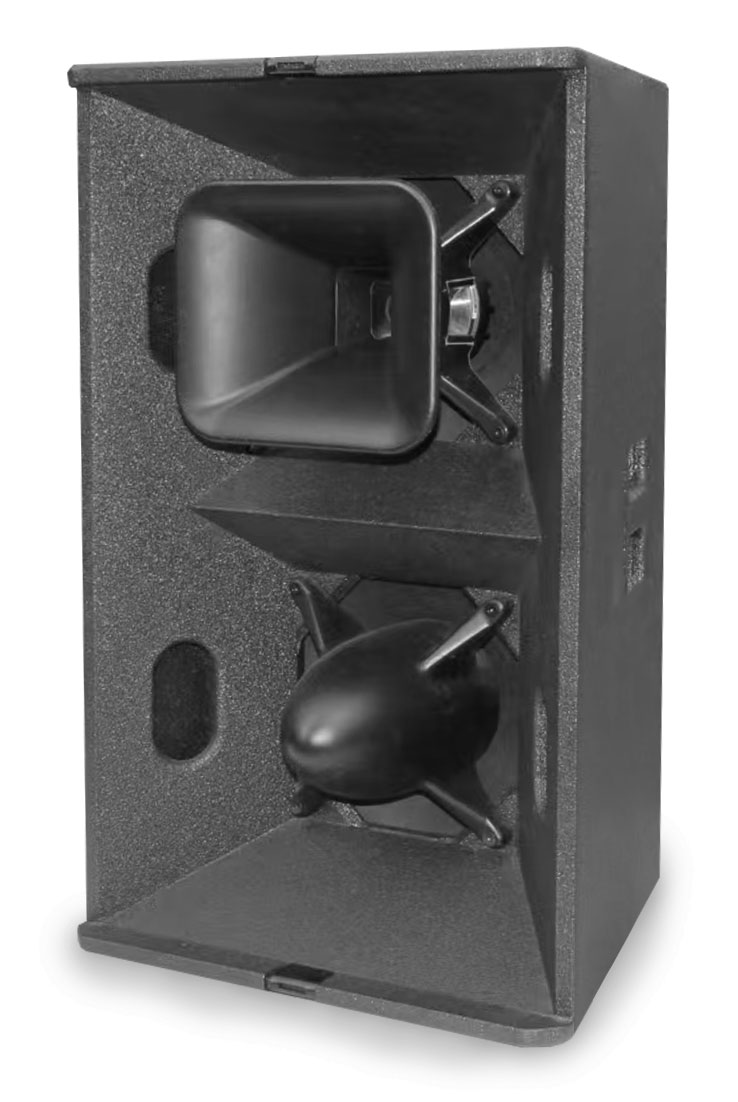

Equipped with two 12” speakers in a tuned enclosure. The HF section features one 1” compression driver coupled to a diffuser, offering a dispersion of 60ºx40º (H x V).
The construction of GX 212 T system is made of birch plywood using CNC machining, with a special water-based paint finish with IP20 protection. Its front part is protected by a robust metal grille and acoustic foam.
Easy to transport thanks to its compact, lightweight and ergonomic design, also offering a pleasant visual impact.
The perfect solution as main PA, frontfill and sidefill at small outdoor events or permanent installation. Ideal as point source system in theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.
|
TECHNICAL DATASHEET |
|
|
Power handling |
900 W RMS / 1800 W program / 3600 W peak |
|
Maximum SPL Calculation |
1m / 136 dB continuous / 139 dB program / 142 dB peak |
|
Nominal impedance |
8 Ohm |
|
Frequency range |
60 - 20000 Hz |
|
Dispersion angle |
60ºx40º (HxV) diffuser |
|
MF and LF component |
Two 12” speakers. Ferrite. 400 W RMS (per unit) |
|
HF component |
One 1" compression driver. Ferrite. 100 W RMS |
|
Frequency cut-off for MF * |
60 Hz Linkwitz-riley 24 filter - 2000 Hz Linkwitz-riley 24 filter |
|
Frequency cut-off for HF * |
2000 Hz Linkwitz-riley 24 filter - 18 kHz Linkwitz-riley 24 filter |
|
Frequency cut-off for subwoofer * |
Up to 90 Hz. Linkwitz-riley 24 filter |
|
Connectors |
2 x Speakon NL4 MP |
|
Construction |
Birch plywood using CNC machining. 2mm thick perforated steel front grille, with oven-dried black electrostatic powder paint finish. Includes acoustic foam. |
|
Paint |
Water-based paint finish with IP20 protection. Black color (standard) |
|
Dimensions (height x width x depth) |
700 x 440 x 435mm (27,56 x 17,32 x 17,13in) |
|
Weight |
32 Kg (70,55 lbs) net / 34 Kg (74,96 lbs) with packaging |
