New IRIS SERIES

The new Iris Series from Pro DG Systems is the ultimate column-type system configuration for permanent installation, as portable system and all types of point source applications where high performance and a discreet visual impact are required.

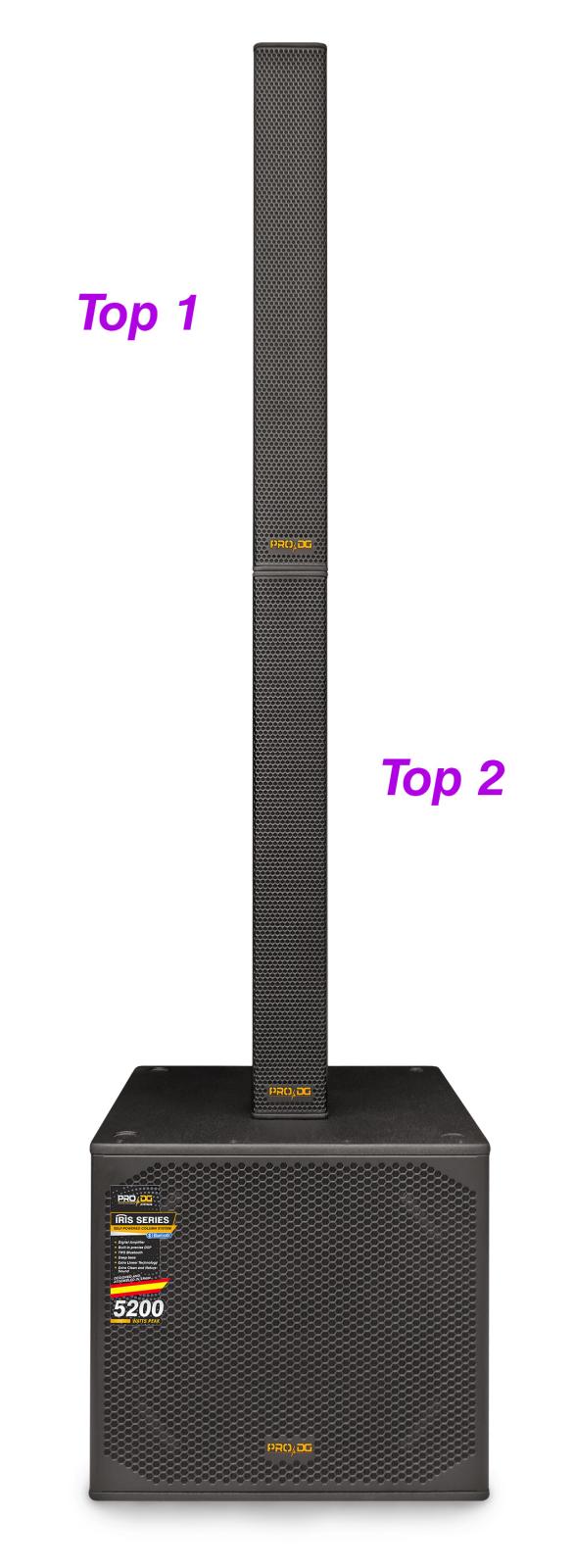

The new Iris Series is composed by:

Column 1 (top 1) composed by; 6 Pro DG Systems woofers of 3.5”, 40 W RMS - 8 Ohm + Pro DG Systems compression driver of 0.75”, 50 W RMS - 8 Ohm which is coupled to a diffuser with a dispersion of 90x40º (HxV). In charge of reproducing mid and high frequencies.

Column 2 (top 2) composed by; 6 Pro DG Systems woofers of 3.5”, 40 W RMS - 8 Ohm. As mid frequencies reinforcement.

1 subwoofer composed by 1 Pro DG Systems speaker of 18”, 800 W RMS - 8 Ohm. In charge of reproducing low frequencies.

All components (columns and subwoofer) are amplified through the state-of-the-art Class-D amplification module included in the subwoofer itself, it incorporates 4 factory presets, as well as independent column and subwoofer volume controls, 2 XLR / Jack combo inputs, with microphone and line selector on channel 2 + XLR link, ready to plug and work.

Bluetooth connection is available to play music through your PC, mobile phone or tablet and TWS (True Wireless Stereo) function, which allows you to play music in stereo through Bluetooth synchronization.

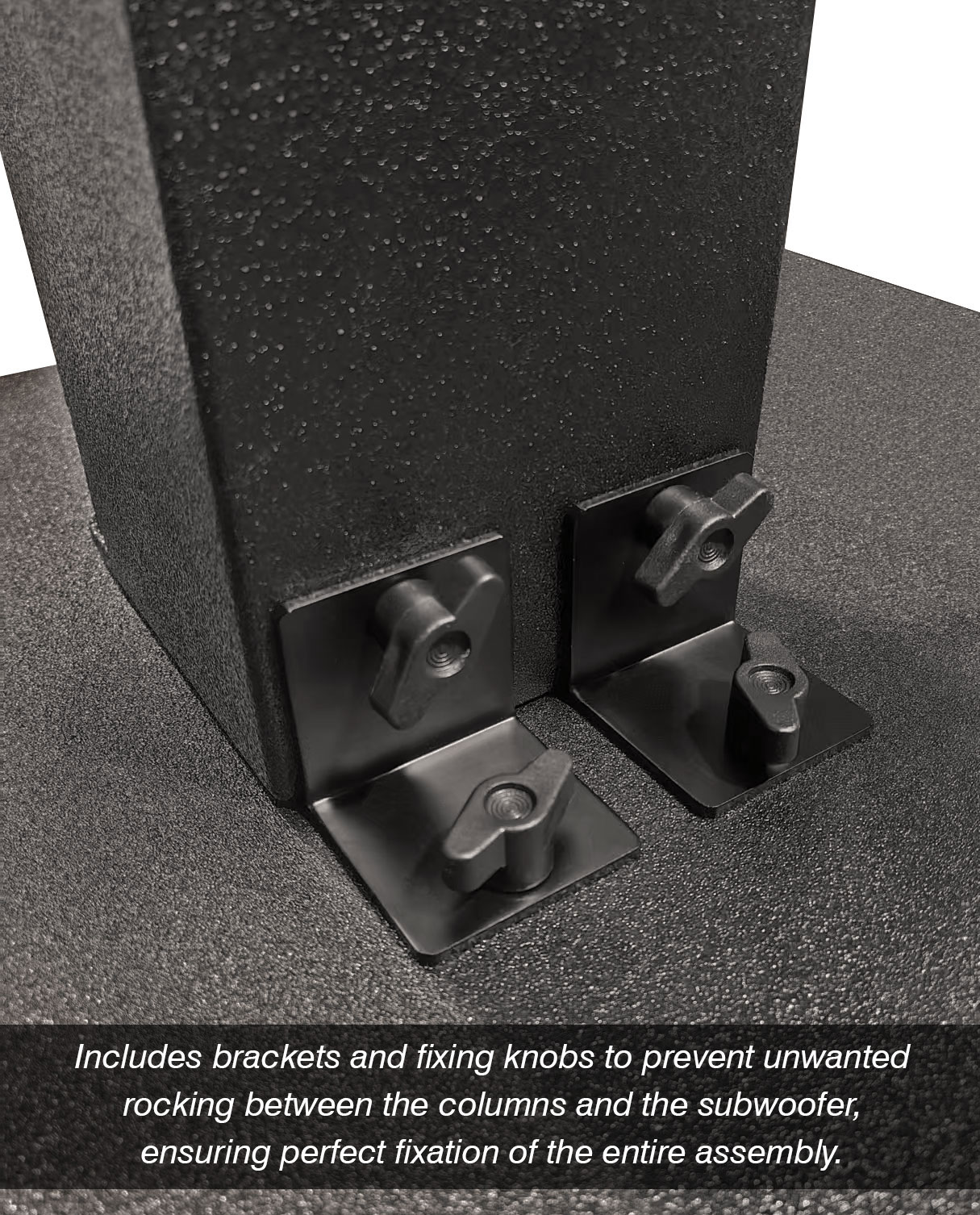

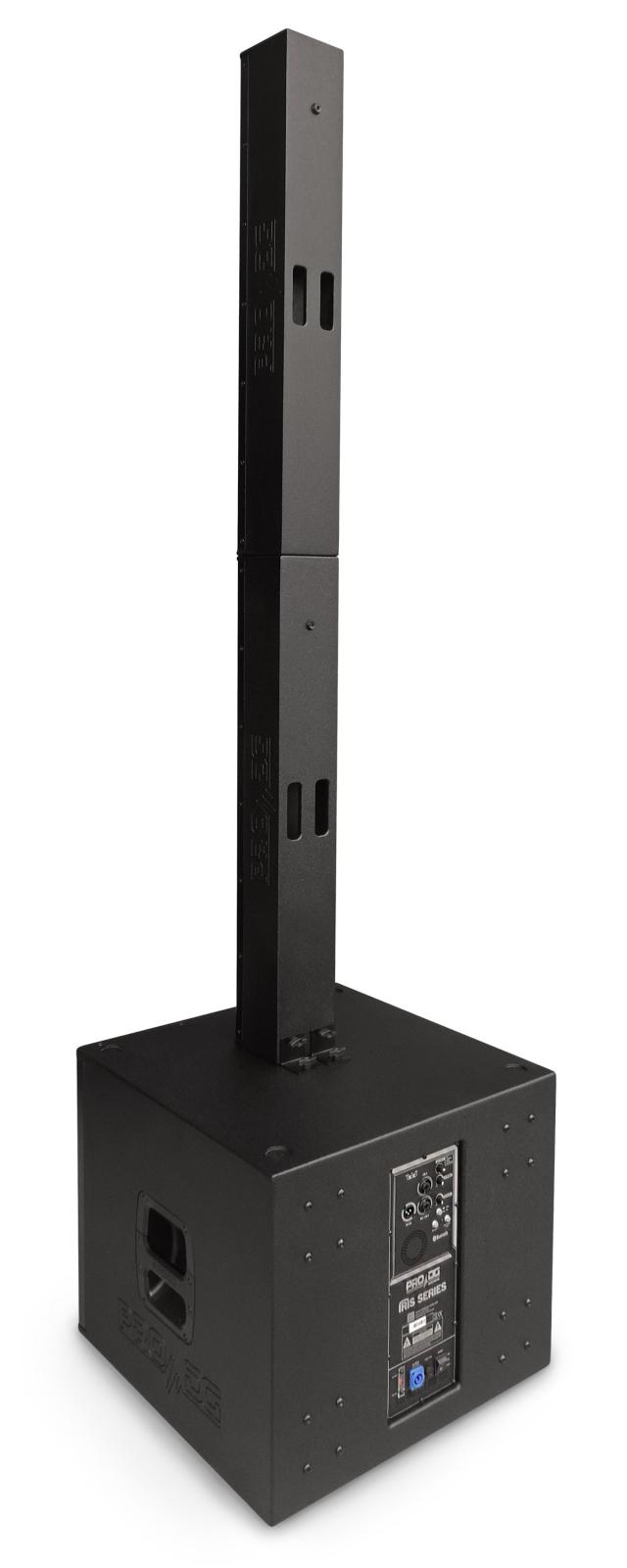

No wiring between elements! Both the power and signal between the subwoofer and both columns are transmitted through the supports that connect the different elements together. Simply connect the power and signal to the subwoofer and you're done!

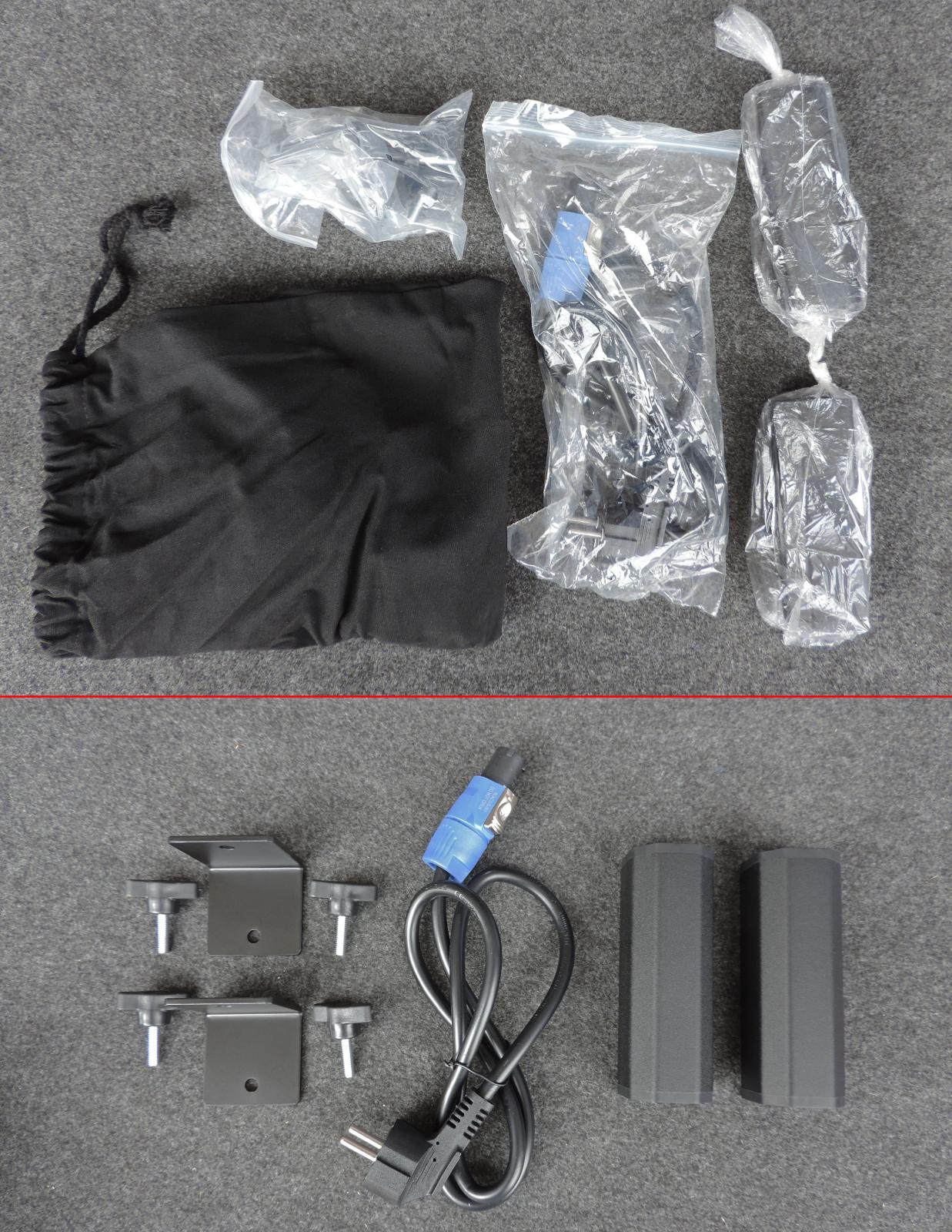

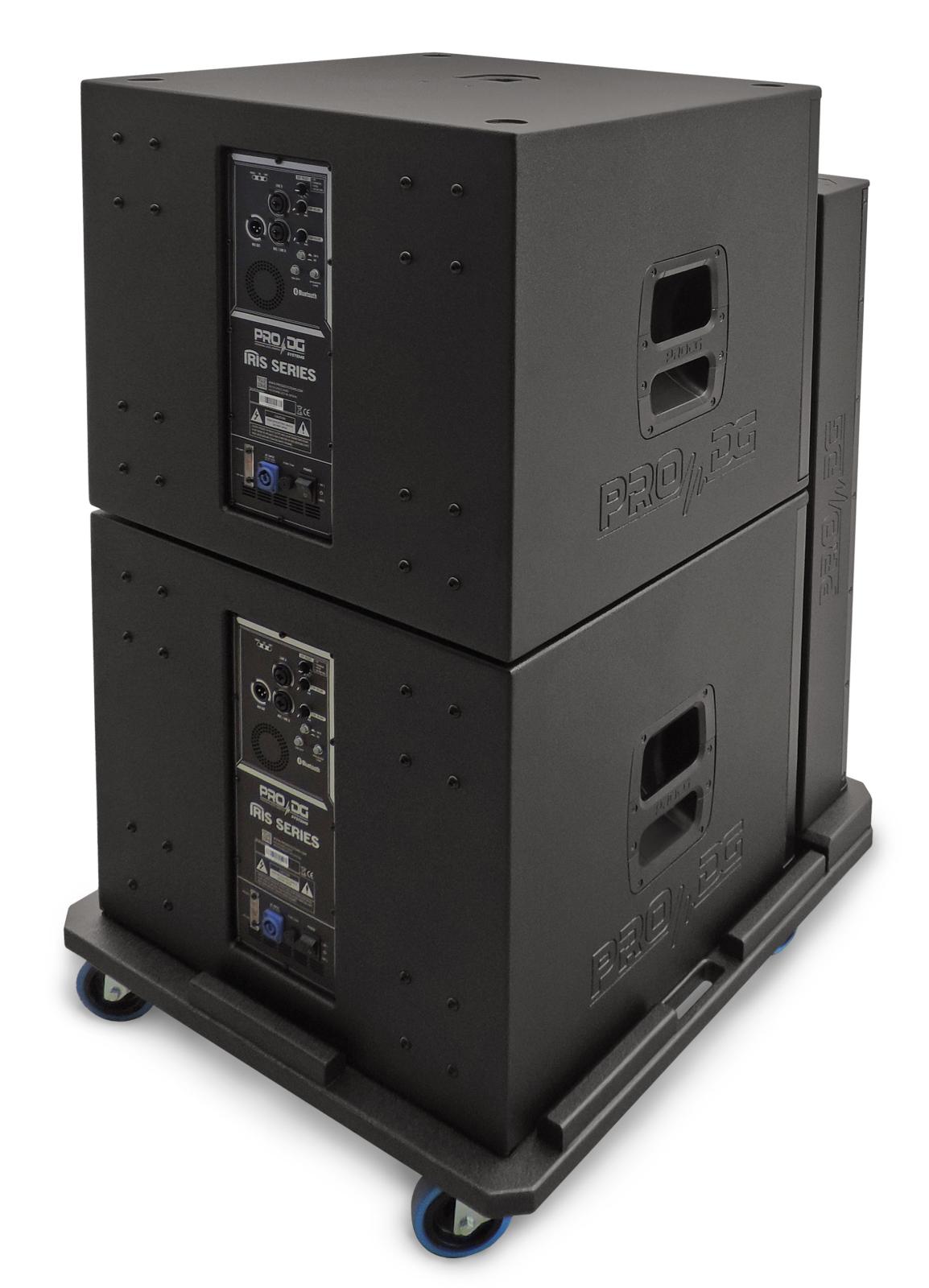

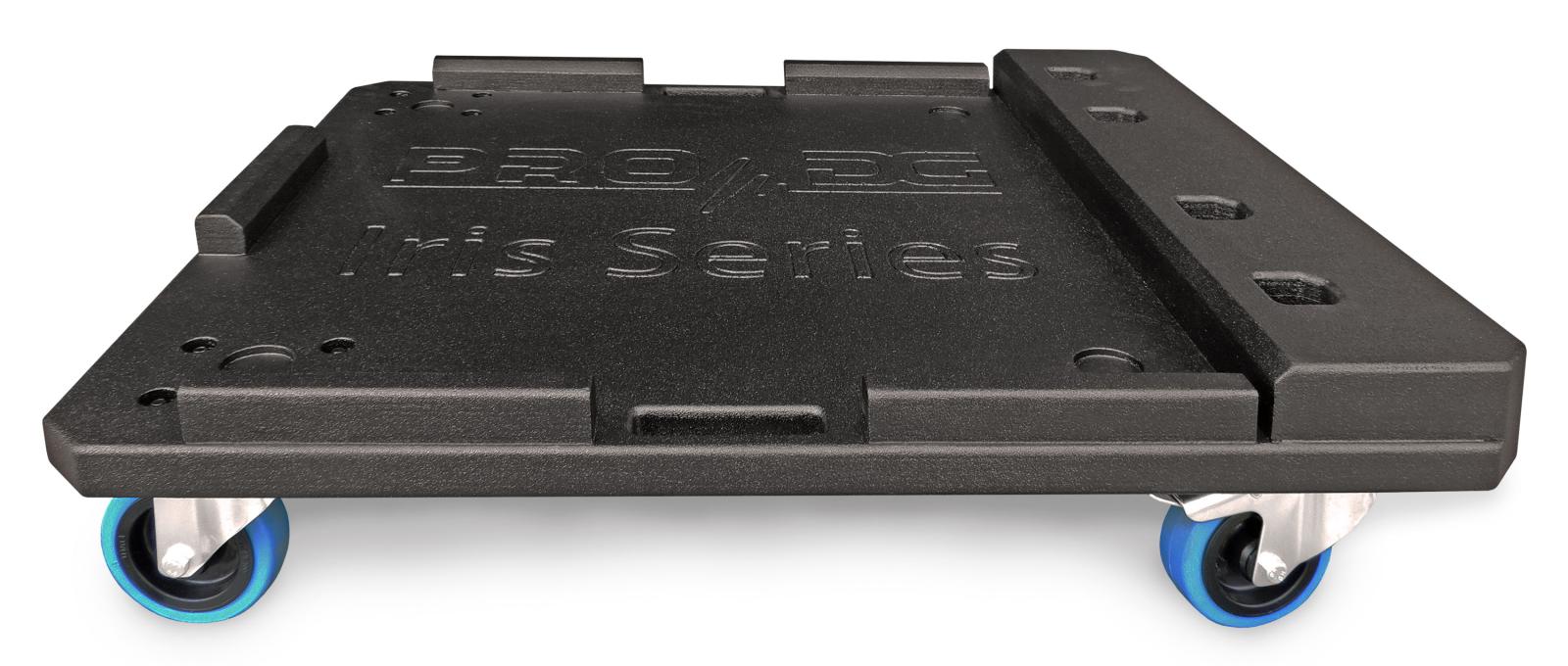

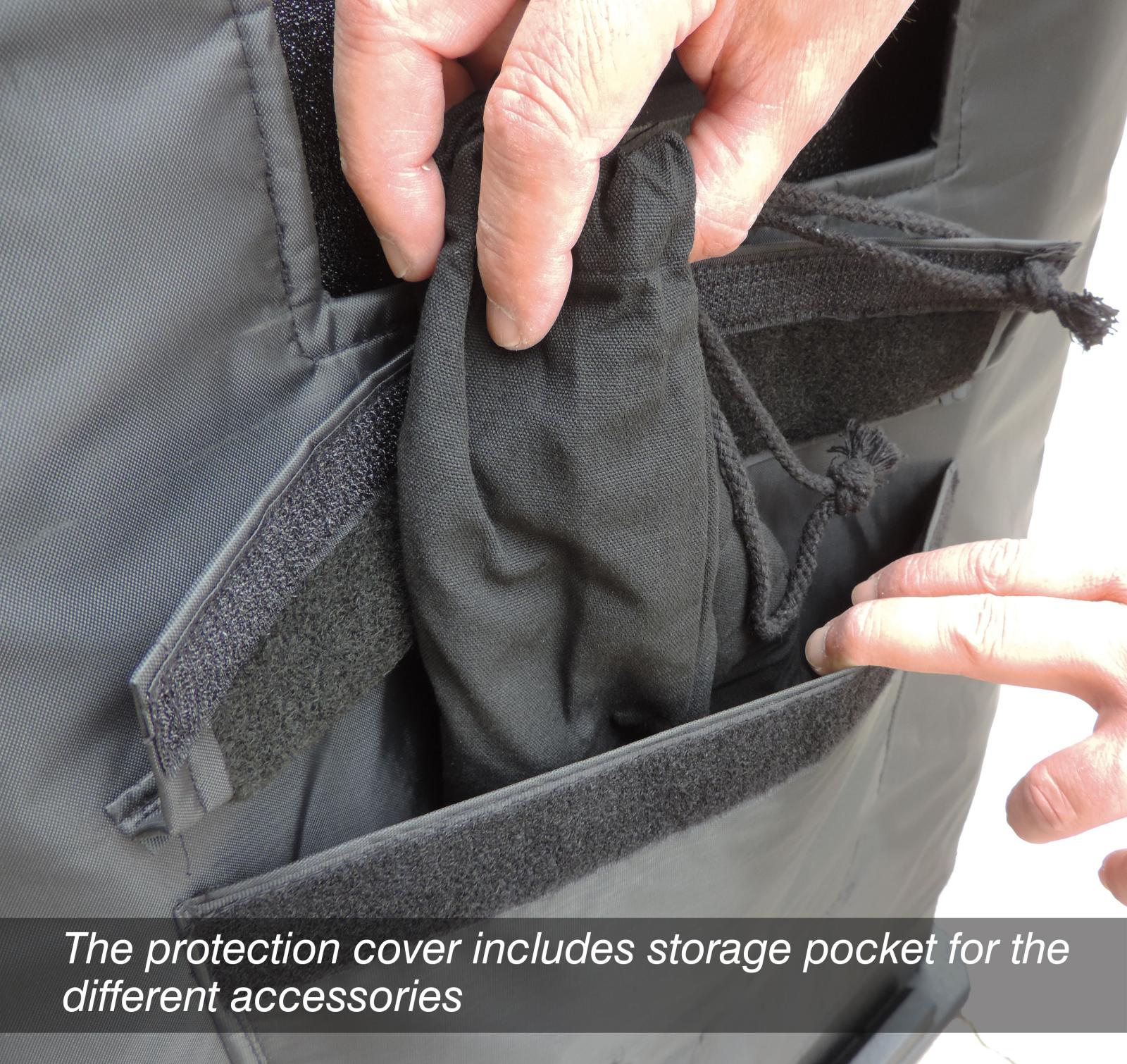

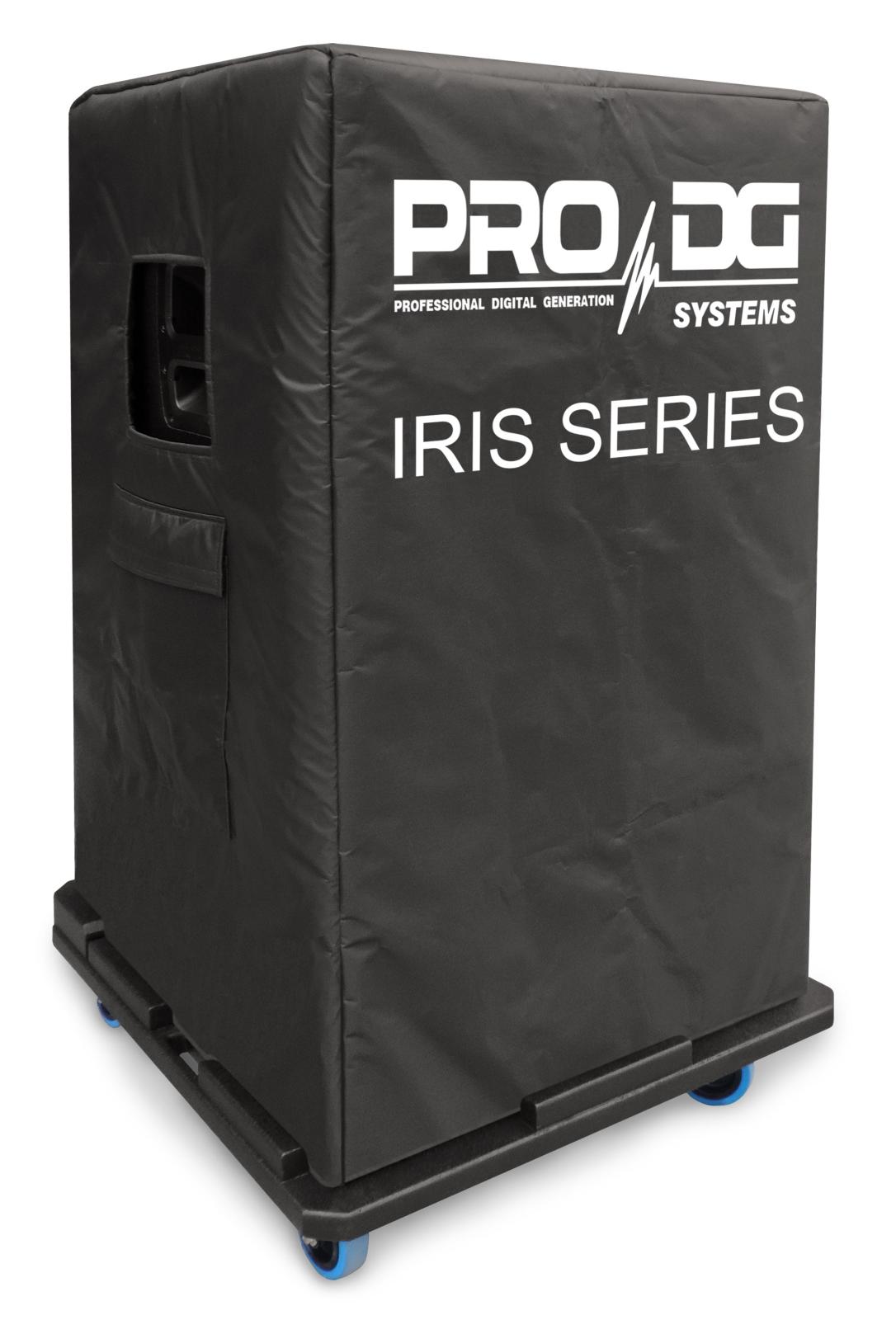

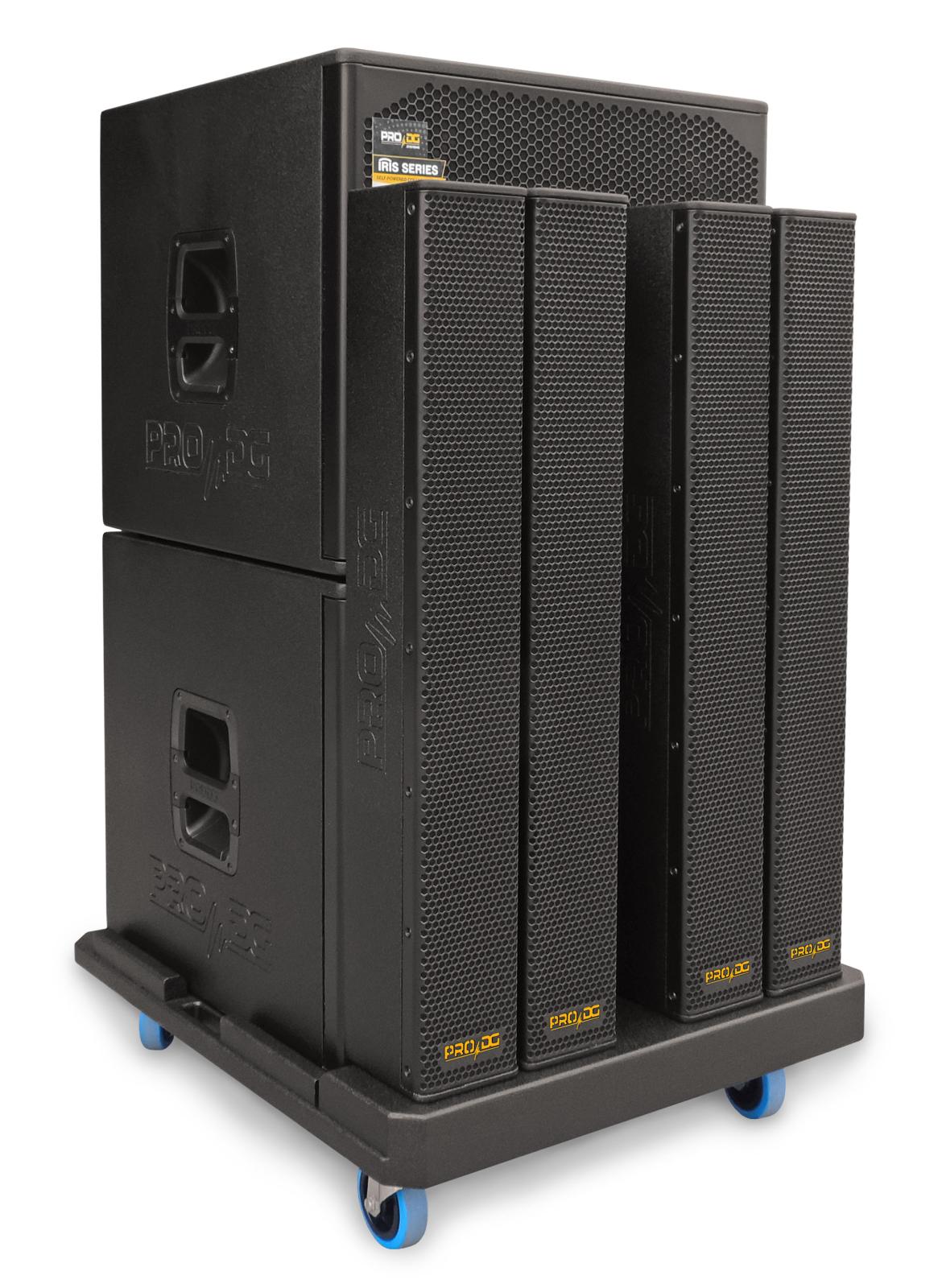

The compact design, reduced weight, and the inclusion of handles on both the columns and the subwoofer ensure maximum system ergonomics. Transport trolley and protection cover are also available, allowing for significant logistical savings.

The easy interaction of its different elements makes it a tremendously versatile modular system, allowing it to be easily assembled by a single person.

The innovative versatility of the Iris Series makes it the ideal system for main PA, frontfill, and sidefill at outdoor events or permanent installation. Ideal for live concerts, theaters, under-amphitheater coverage, houses of worship, corporate applications, and all types of events where high performance and versatility are required.

---

TECHNICAL DATASHEET

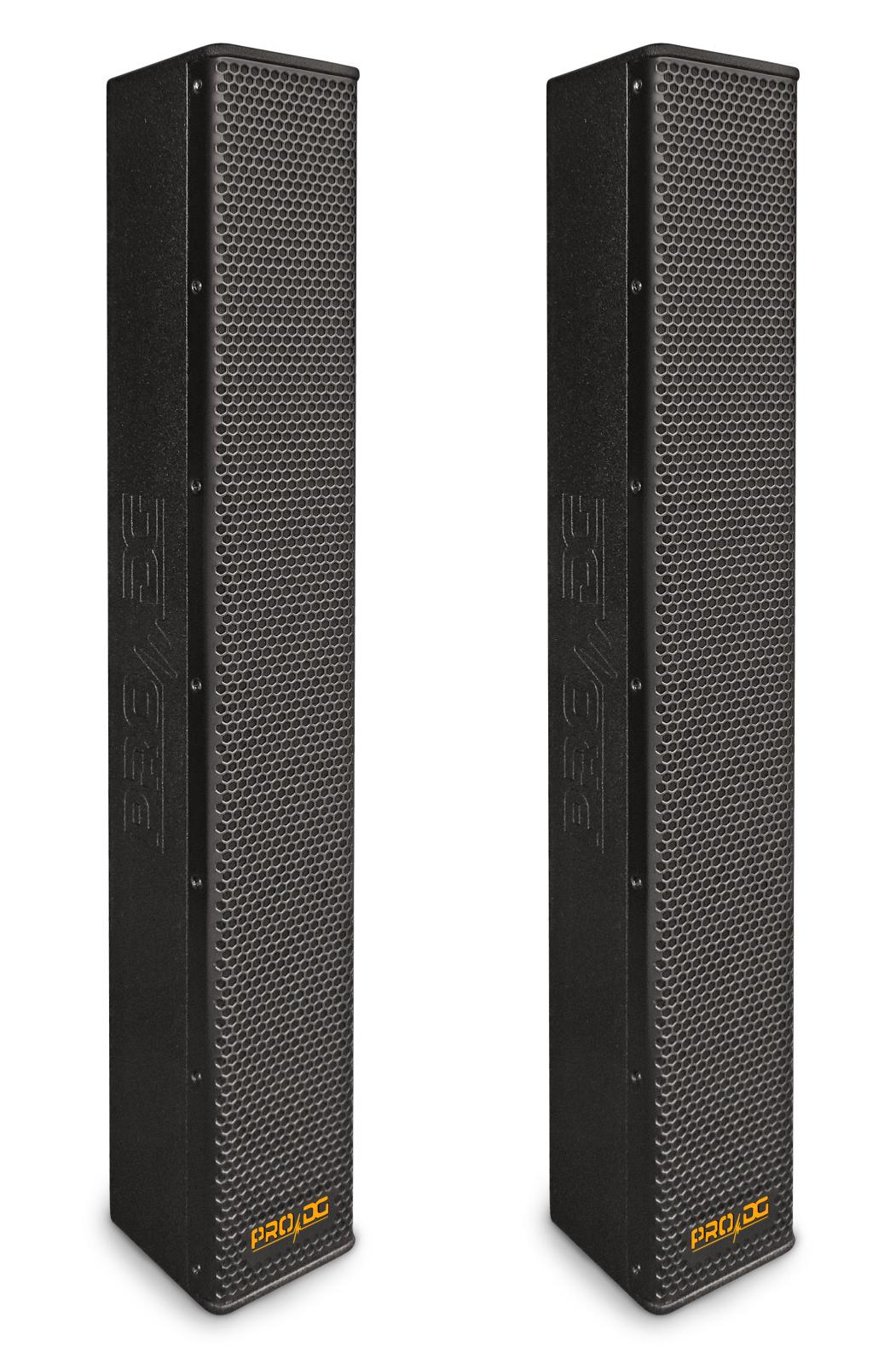

COLUMNS (TOPS)
Components	Top 1: 6 Pro DG Systems woofers of 3.5”, 40 W RMS - 8 Ohm + Pro DG Systems compression driver of 0.75”, 50 W RMS - 8 Ohm which is coupled to a diffuser with a dispersion of 90x40º (HxV). Top 2: 6 Pro DG Systems woofers of 3.5”, 40 W RMS - 8 Ohm.
Frecuency range	150 - 19000 Hz
Power handling	500 W RMS (both tops) / 1000 W program / 2000 W peak.
SPL max	129 dB (both tops).
Connection	“Wireless” through joint supports.
Construction	CNC-machined birch plywood. Perforated steel front grille with oven dried black powder-coated electrostatic paint finish. Includes acoustic foam.
Paint	Special polyurea finish resistant to impacts and inclement weather. Black color (standard).
Dimensions of each column (Height x Width x Depth)	892 x 125 x 140mm (35,12 x 4,92 x 5,51in).
Packaging dimensions - both columns together (Height x Width x Depth)	1005 x 205 x 385mm (39,57 x 8,07 x 15,16in).
Weight	Top 1: 11,3 Kg (24,91 lbs) net. Top 2: 10,2 Kg (22,49 lbs) net / 23,5 Kg (51,81 lbs) with packaging (both tops).

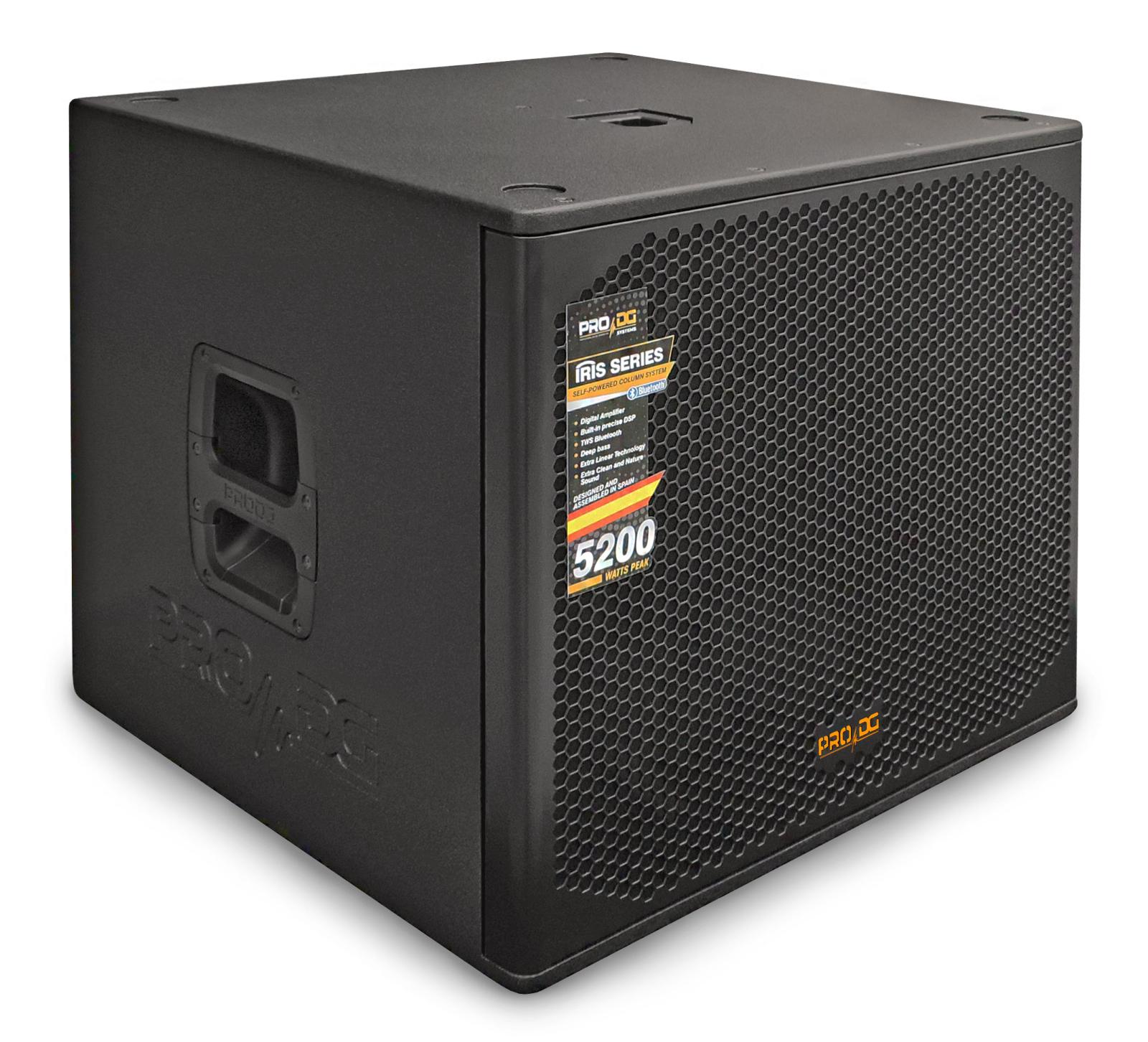

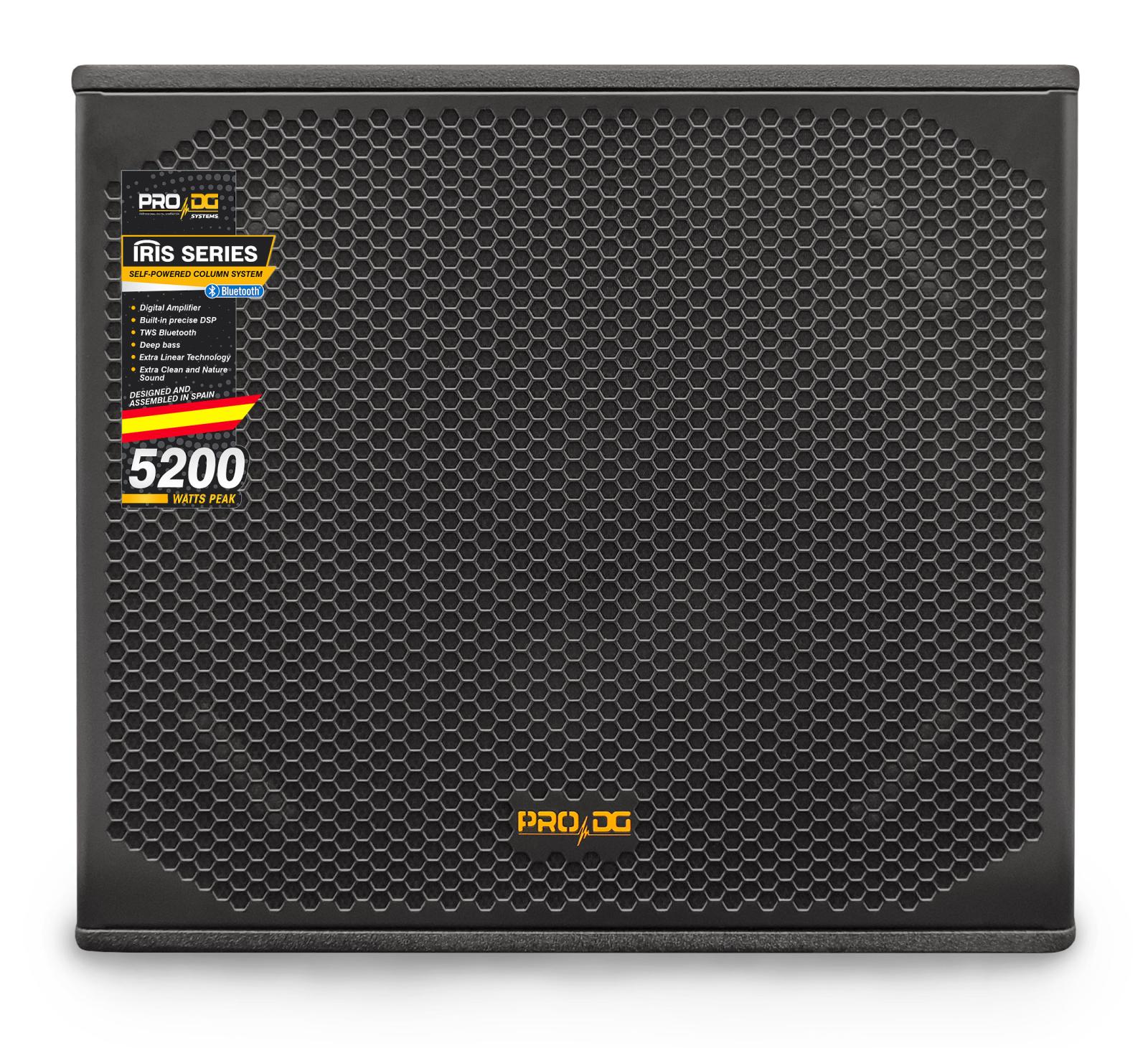

SUBWOOFER
Component	1 Pro DG Systems speaker of 18”, 800 W RMS - 8 Ohm.
Frecuency range	35 - 150 Hz.
Power handling	800 W RMS / 1600 W program / 3200 W peak.
SPL max	133 dB.
Amplifier	State-of-the-art Class-D. DSP processor with 4 factory presets (Live, Playback /DJ, Speech, Only Sub).

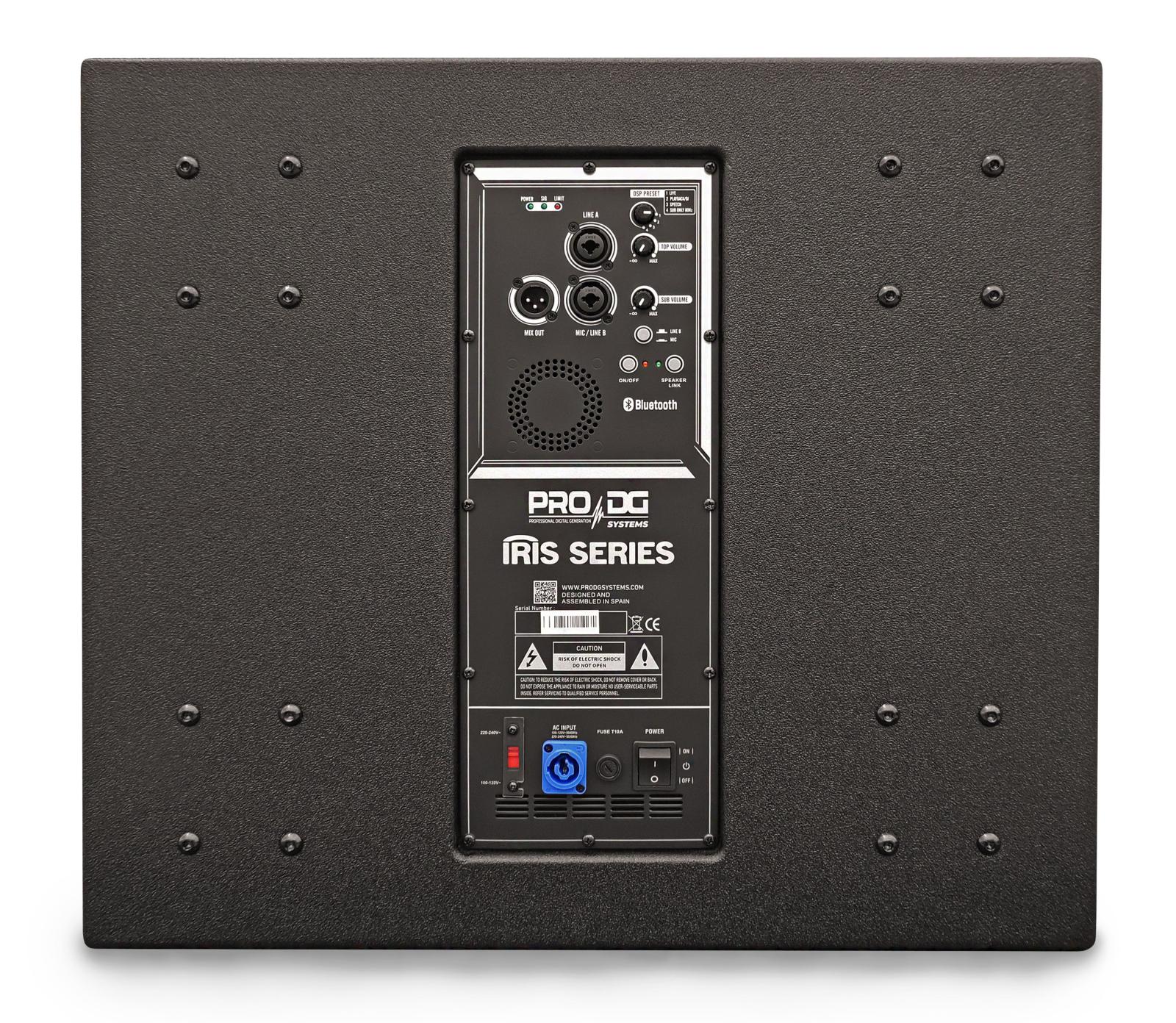

Connection	“Wireless” through joint supports. 2 XLR/Jack combo inputs, with microphone and line selector on channel 2 + XLR link. Bluetooth connection and TWS function. PowerCON (current supply).
Controls	On/Off switch, independent top and subwoofer volume controls, Line/Mic switch, Bluetooth on/off switch, TWS switch, DSP preset selector.
Power supply	100~240V 50/60Hz with voltage selector.
Protection	Overvoltage protection up to 135/264 V AC, output overload protection, clip, limiter.
Construction	CNC-machined birch plywood. Perforated steel front grille with oven dried black powder-coated electrostatic paint finish. Includes acoustic foam.
Paint	Special polyurea finish resistant to impacts and inclement weather. Black color (standard).
Dimensions (Height x Width x Depth)	545 x 600 x 580mm (21,46 x 23,62 x 22,84in).
Packaging dimensions (Height x Width x Depth)	615 x 675 x 655mm (24,21 x 26,58 x 25,79in).
Weight	34,5 Kg (76,06 lbs) net / 36,5 Kg (80,47 lbs) with packaging.
