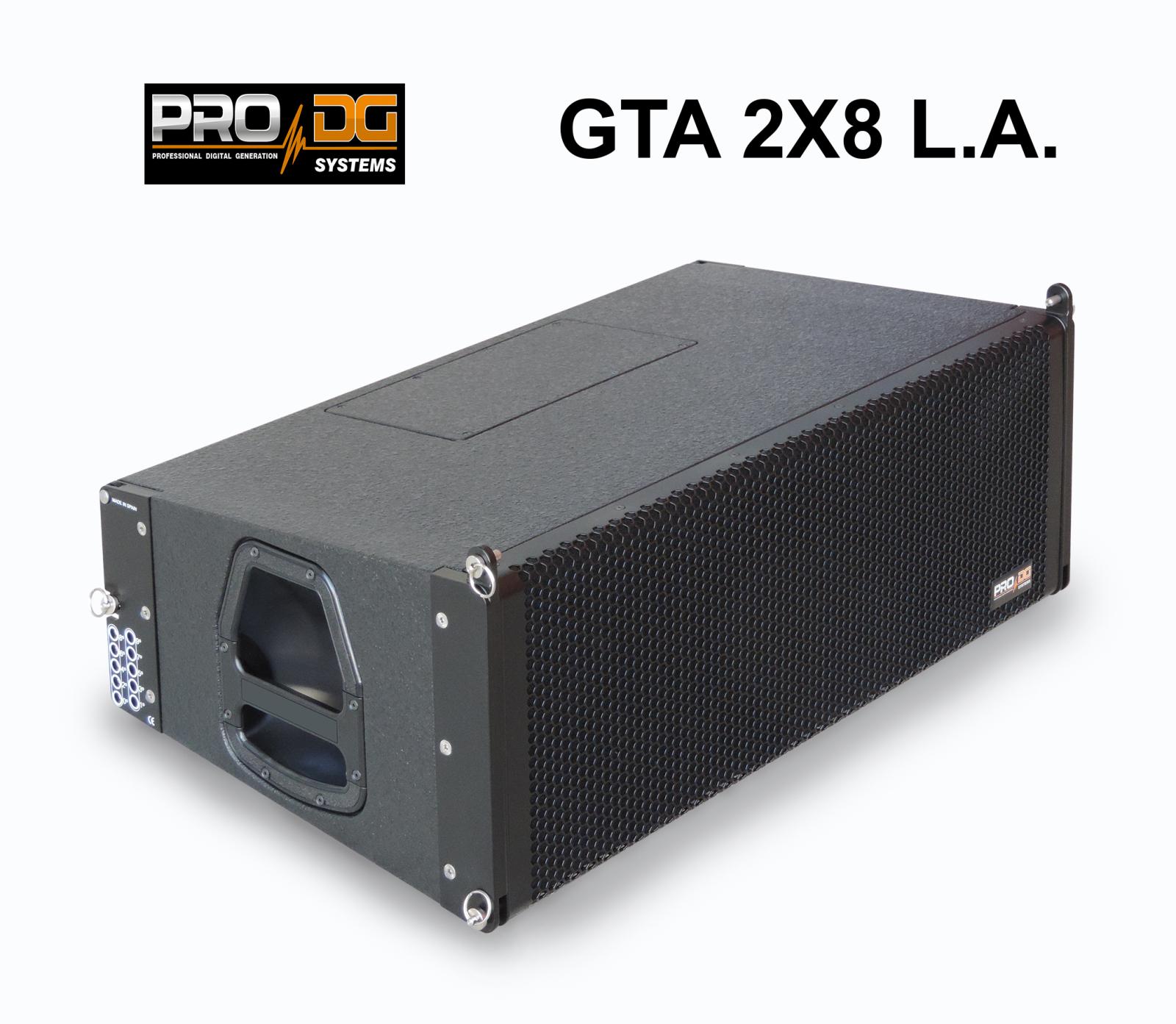

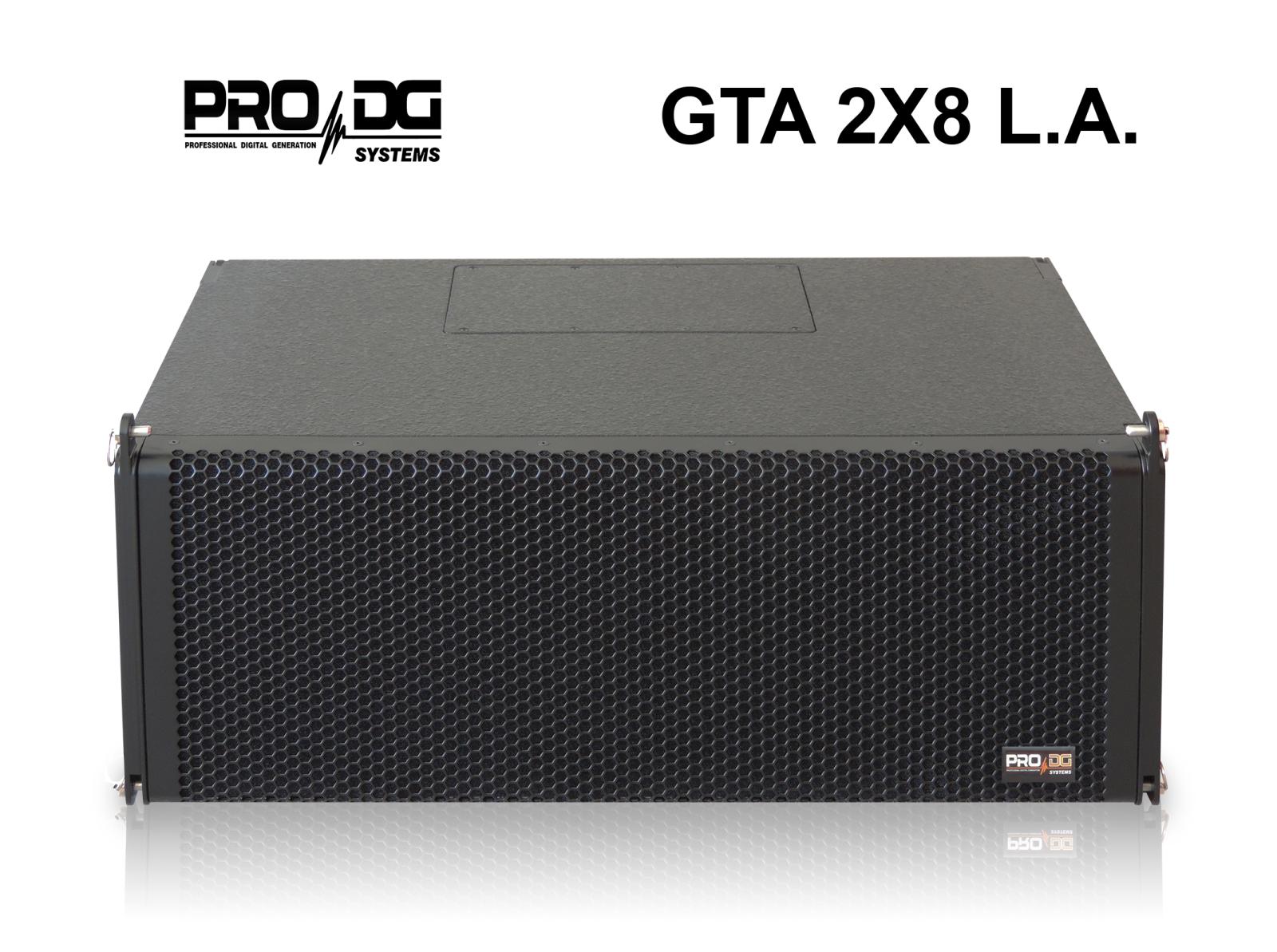

GTA 2X8 LA

2-way self-powered Line Array system of high performance equipped with two (2) speakers of 8” in a tuned enclosure. The HF section has two (2) compression drivers of 1” coupled to a wave guide. The transducer configuration generates a symmetric and horizontal dispersion of 120 degrees without secondary lobes over the frequency range. Ideal as main P.A. Frontfill, Sidefill and Downfill in outdoor events or permanent installation.

It is excellent to be combined with GTA 118 B or GTA 218 B, which allows different configurations of high performance and SPL.

EASE FOCUS prediction software is available.

GTA 2X8 L.A. incorporates a Class D amplifier module of last generation Pro DG Systems GT 1.2 H. Click here to see more information about GT 1.2 H.

DSP Software is available. Click here to redirect to the download link of this software. Consult our Technical Service for more information.

F / Case for transport 4 units GTA 2X8 L.A. is available.

Dolly board and protection cover for transport 4 units GTA 2X8 L.A. is available.

ACOUSTIC SPECIFICATIONS:

Power Handling: 700 W RMS (EIA 426A Standard) / 1400 W program / 2800 W peak.

Nominal Impendence: 16 Ohm.

Average Sensitivity: 100 dB / 2.83 V / 1m (average of 100-18000 Hz wideband).

Calculated Maximum SPL: / 1m 127 dB continuous / 130 dB program / 133 dB peak.

Frequency Range: +/- 3 dB from 80 Hz to 20 KHz

Nominal Directivity: 120º degrees horizontal, vertical dispersion depends on longitude or personalized configuration.

Low / Mid Frequency Driver: Two (2) Beyma speakers of 8”, 8 Ohm, 300 W, 200 mm (2”) with high temperature voice coil on glass fibre former.

High Frequency Driver: Two (2) Beyma drivers of 1”, 8 Ohm, 50 W, 25 mm exit (44.4 mm) with voice coil Mylar diaphragm.

Recommended Amplifier: Pro DG systems GT 1.2 H into the Cabinet.

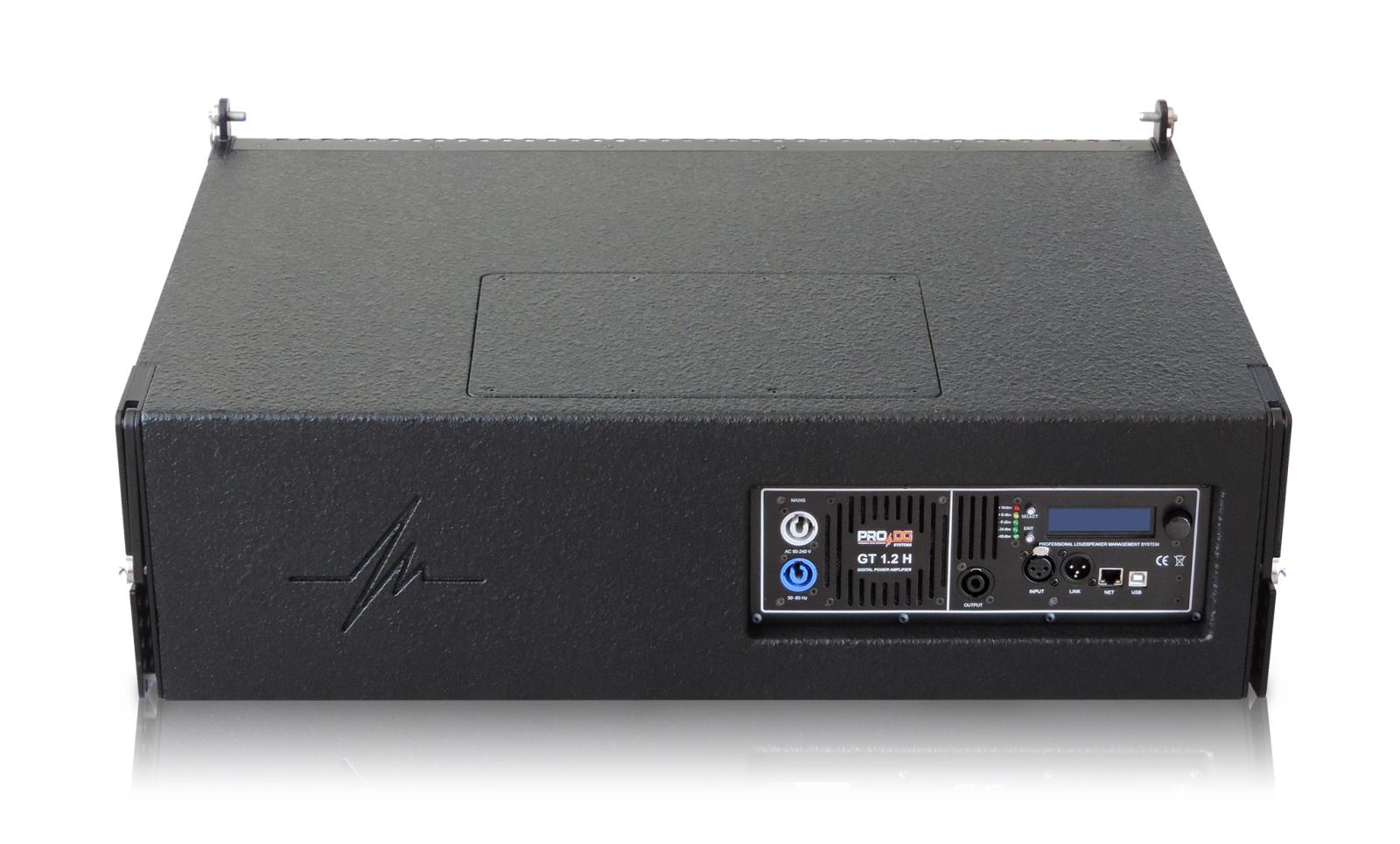

Connectors: 2 X XLR + 1 NL4MP speakon connectors. USB-Ethernet + 2 X Powercom.

Acoustic Box: CNC model, 15mm made from birch wood plated on the exterior.

Finish: Standard pain finish in black.

Dimensions: (HxWxD) 280x735x465mm (11,02”x28,94”x18,31”).

Weight: 33,7 Kg (74,30 lbs) net / 34,9 Kg (76,94 lbs) gross with packaging.
